Home > Harnesses & Connectors > Automotive Connectors > Terminals & Pins

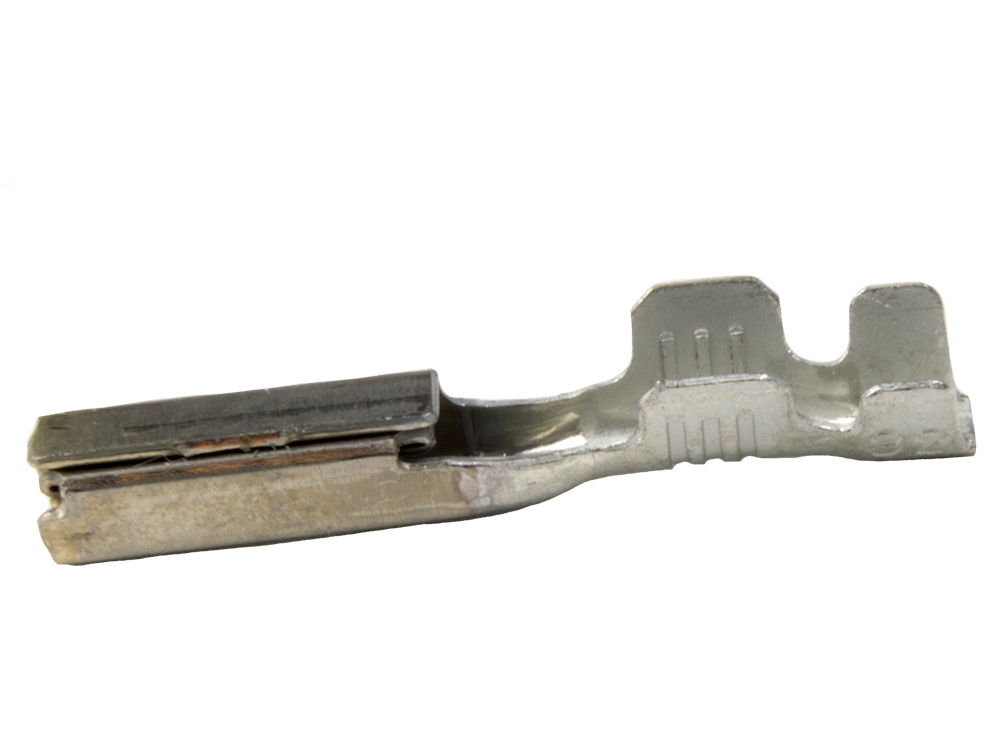

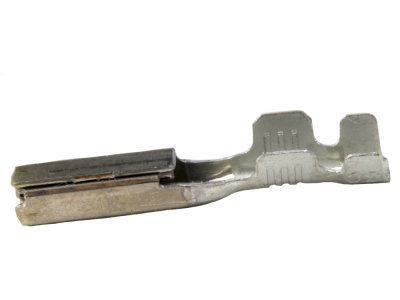

Molex MX64 33467 Female Unsealed Gold (Au) 20-18 AWG Terminal

$0.52/ea
QtyPrice/ea
1$0.52
25$0.45
50$0.40
100$0.35
min qty: 10

Part #: 100-00354

Attributes

  • Manufacturer: MOLEX
  • Family: MX64
  • Series:
  • Gender: FEMALE
  • Sealed: UNSEALED

Dimensions

  • Weight: .23 Gram

This terminal is for use with 20ga or 18ga wire and is used with the GM E38, E67, E37, and E39 ECMs.

This terminal is used with the following connectors:

Part # Description Min Qty Price Qty
100 01464 100-01464 Molex 73 Way Black MX123 Sealed Female Black Bottom Wire Dress 9 Connector – $27.50
Image Not Available Product 100-01897 49 Way Black MX123 Sealed Female Blue Bottom Wire Dress 0 Connector for LT5 Corvette E99 ECM – $33.35
No Image Available 3 100-01912 Molex 49 Way Black MX123 Sealed Female Black Bottom Connector for LT5 Corvette E99 ECM – $43.25
100-01877 Molex 66 Way Black MX123 Sealed Female Black Bottom – $35.00
100 02206 100-02206 Molex 66 Way Black MX123 Sealed Female Blue Bottom Connector Wire Dress 0 Key Option A – $40.00
100 00098 100-00098 Molex 56 Way Black MX123 Sealed Female Blue Bottom Wire Dress 0 Connector – $25.00
100 00099 100-00099 Molex 73 Way Black MX123 Sealed Female Black Bottom Wire Dress 0 Connector – $25.00
100 00100 100-00100 Molex 73 Way Black MX123 Sealed Female Gray Bottom Wire Dress 0 Connector – $25.00
100 00101 100-00101 Molex 80 Way Black MX123 Sealed Female Gray Bottom Wire Dress 0 Connector – $25.00
100 00263 100-00263 Molex 73 Way Black MX123 Sealed Female Blue Bottom Wire Dress 0 Connector – $25.00
100 00851 100-00851 Molex 80 Way Black MX123 MX64 Sealed Female Blue Bottom Connector Key G Wire Dress 0 – $32.50

Tools

Part # Description Min Qty Price Qty
GeneralDieSetImage 624 1038 3 012 RT Rennsteig Crimp Die Set 624 1038 3 012 RT CRIMP DIE SET for Molex MX64 terminal 1 $342.74
