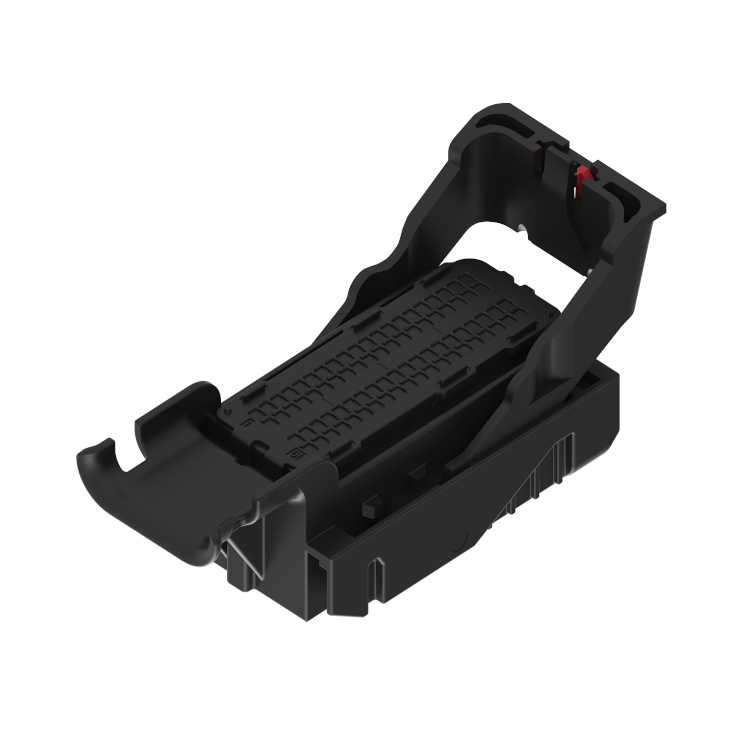

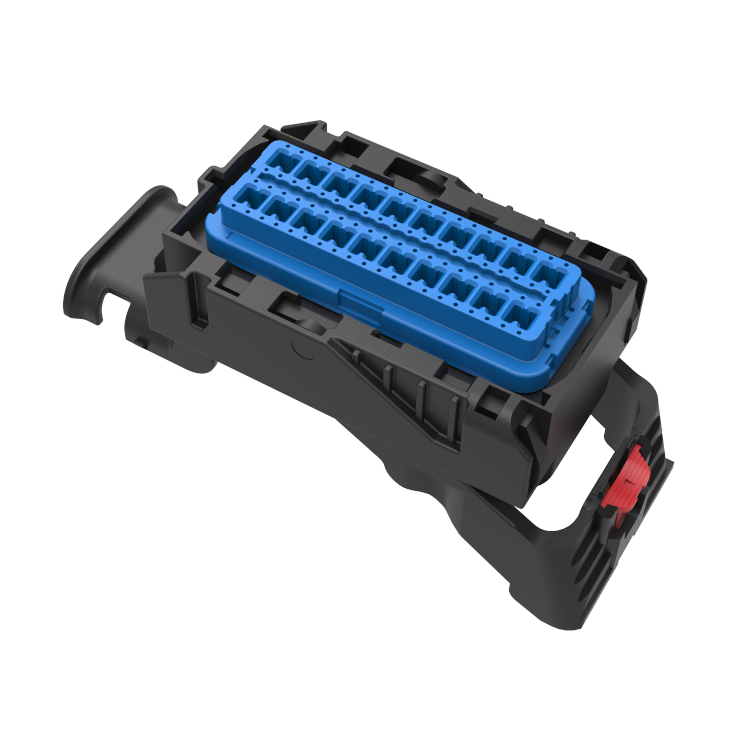

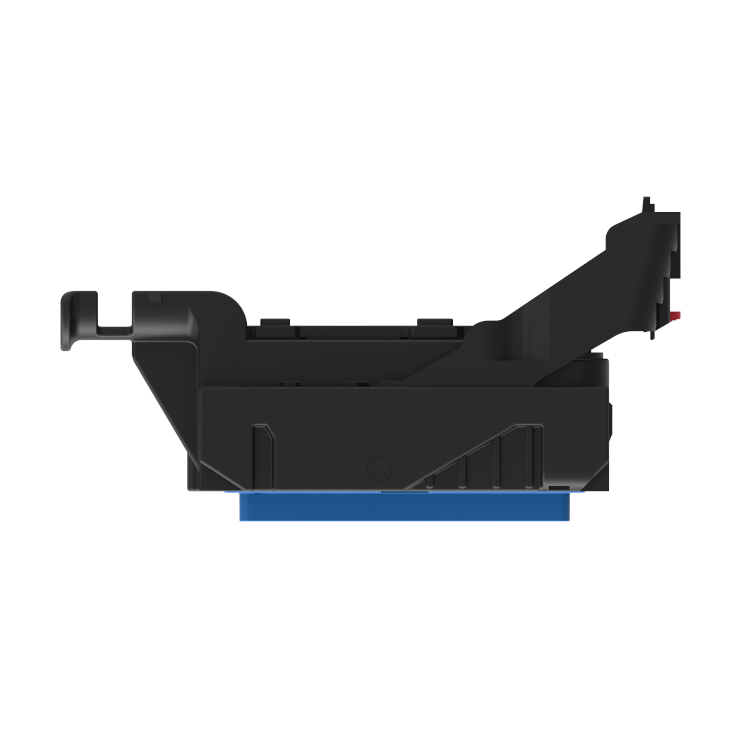

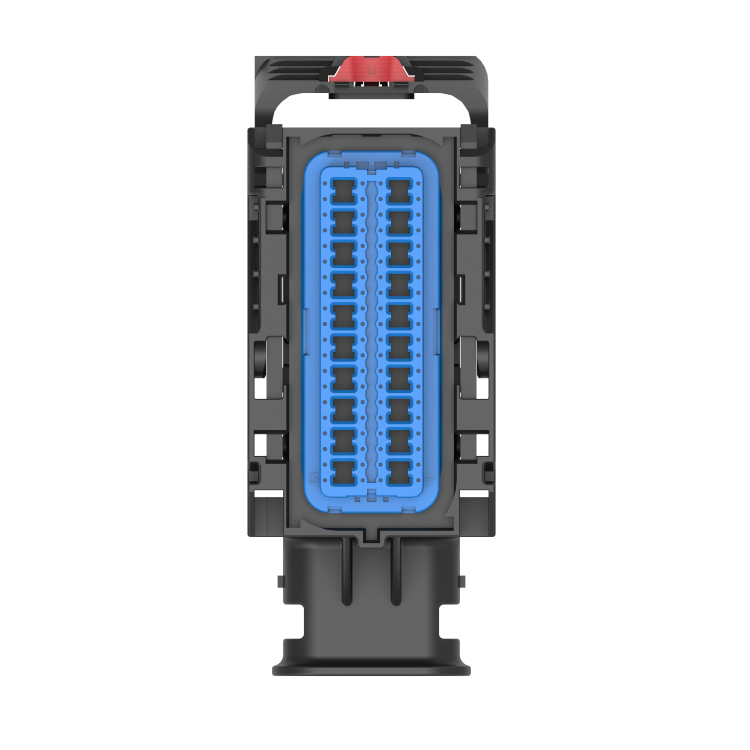

Molex 80 Way Black MX123 MX64 Sealed Female Blue Bottom Connector Key G Wire Dress 0
Part #: 100-00851
Attributes
- COLOR: BLACK, BLUE
- CAVITY COUNT: 80
- SEALED: SEALED
- MANUFACTURER: MOLEX
- FAMILY: MX123
- SERIES: 0.64
Dimensions
- Weight: 50.75 Grams
This connector is used with the AEM Infinity 6 ECM. The bottom retainer is blue.
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00358 | Molex Dress Cover for Molex MX123 Female ECU Connectors for 73 Cavity and 80 Cavity Molex MX123 Female Connectors | – | $3.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00354 | Molex MX64 33467 Female Unsealed Gold (Au) 20-18 AWG Terminal | 10 | $0.52 | |
|
100-00547 | Molex MX64 33467 Female Unsealed Gold (Au) 22 AWG Terminal | 10 | $0.52 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00214 | Delphi Micro 64 and Molex MX123 Cavity Plug | 10 | $0.20 | |
|
100-00467 | Molex MX123 Cavity Plug | 10 | $0.25 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
120-00297 | Aluminum Assembly Fixture for 73W & 80W Molex MX123 Connector - Blue | – | $36.00 |
