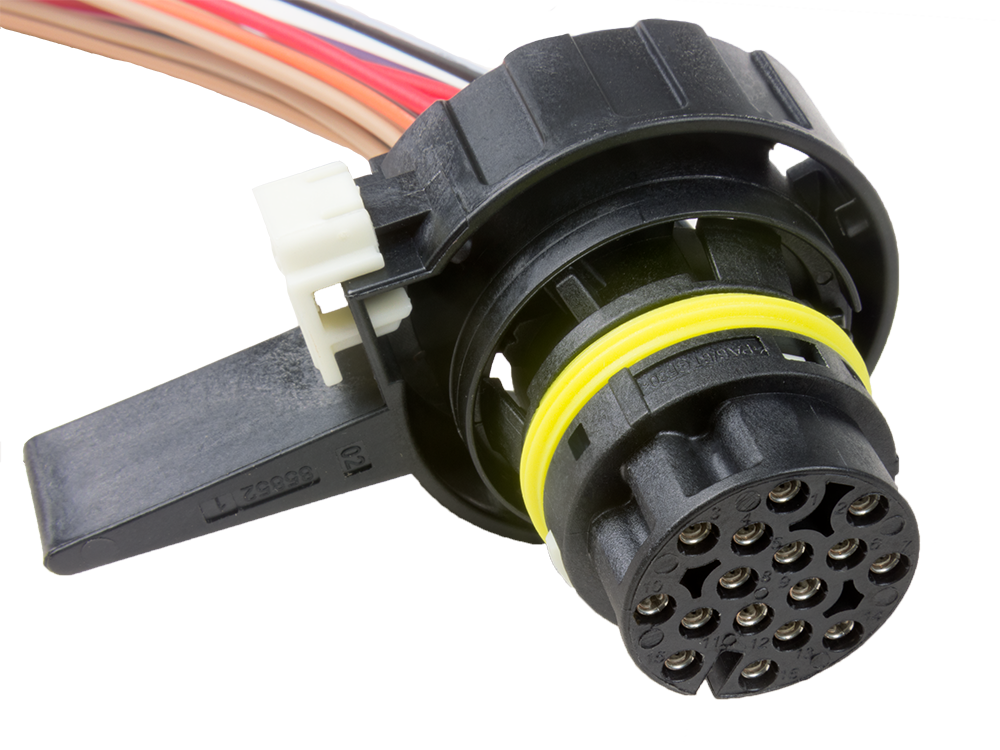

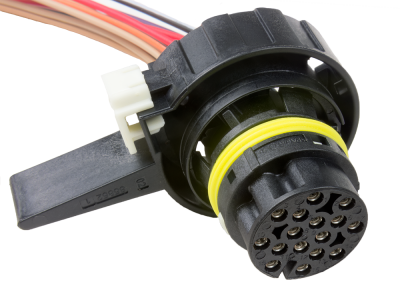

6L80E 6L90E T43 TCM Transmission Connector Pigtail
for GM 6-Speed Automatic Transmissions
Part #: 100-00886
Attributes
- Engine Type:
- Wire Count: 16
- Connector Color: BLACK
- Application: TRANSMISSION
Dimensions
- Weight: 5 Ounces
Do you need a custom length version of this pigtail?
Check out this pigtail at our partner site, LSWiring.com, for custom lengths.
Check out this pigtail at our partner site, LSWiring.com, for custom lengths.
DESCRIPTION:
Genuine Kostal (GM Original Equipment Manufacturer - OEM) connector replacement pigtail for many GM 6-speed automatic transmissions from 2007-newer engine harnesses. Commonly used with GM Vortec LS-Series, LS1, LS2, LS3, and LSA engines.This transmission can be found in many common vehicles such as Cadillac Escalade, CTS, STS, XLR; Chevy Silverado, Camaro, Corvette, Tahoe, Suburban; GMC Sierra; and Pontiac G8.
Assembled with 18-inch lengths of automotive TXL wire.
GM CONNECTOR PART NUMBERS: 15131300, 19303772
CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| 1 | 18 GA | RED/WHT | 12V BATTERY |
| 2 | 18 GA | BLK/WHT | GROUND |
| 3 | 20 GA | ORN/BLK | PARK/NEUTRAL SIGNAL |
| 4 | 18 GA | RED/WHT | 12V BATTERY |
| 5 | 18 GA | BLK/WHT | GROUND |
| 6 | 22 GA | WHT | STOP LAMP SWITCH SIGNAL |
| 7 | 22 GA | PPL | TAP UP/DOWN SIGNAL |
| 8 | 20 GA | TAN | CAN- (120 Ω APPLIED) |
| 9 | 20 GA | YEL | 12V ACCESSORY VOLTAGE |
| 10 | 20 GA | TAN/BLK | CAN+ |
| 11 | 20 GA | TAN | CAN- |
| 12 | 20 GA | PNK | 12V SWITCHED IGNITION |
| 13 | 20 GA | TAN | CAN- |
| 14 | 20 GA | TAN/BLK | CAN+ |
| 15 | 20 GA | TAN/BLK | CAN+ (120 Ω APPLIED) |
| 16 | 22 GA | ORN/BLK | REPLICATED TOS SIGNAL |
QUALITY STATEMENT:
EFI Connection uses KOSTAL tooling to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal in this connector.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-02399 | Connector Kit for 6L80e 6L90e ZF8HP ZF8HP2 Transmissions Kostal GM BMW FCA RAM | – | $44.99 | |
|
100-00031 | Kostal 16 Way Black LKS 1.5 Sealed Female Connector | 1 | $21.50 |
Tools
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
680-87035 | Rennsteig Terminal Removal Tool (compare to Kostal 95945355) for Kostal LKS 1,5 Terminals and More | 1 | $36.70 | |
|
130-00074 | Kostal LKS 1,5 Terminal Removal Tool for Kostal 1,5 Female Sealed Terminals | – | $80.00 |
