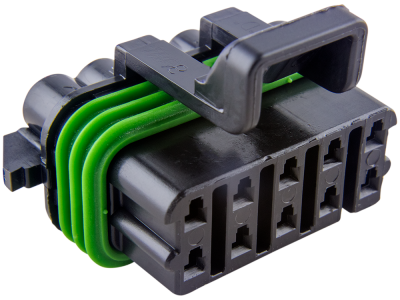

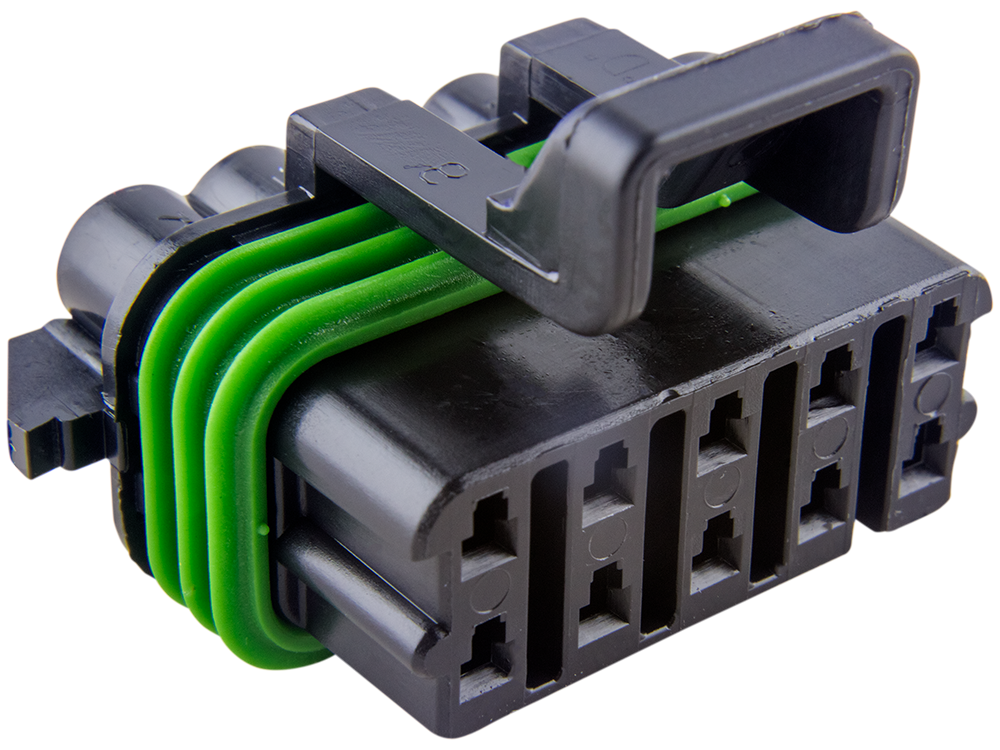

Aptiv (Delphi) 10 Way Black Metri-Pack 150 Sealed Female Connector

$7.00/ea
QtyPrice/ea
1$7.00
5$3.50

Part #: 100-00065

Attributes

  • COLOR: BLACK
  • CAVITY COUNT: 10
  • SEALED: SEALED
  • MANUFACTURER: DELPHI
  • FAMILY: METRI-PACK
  • SERIES: 150

Dimensions

  • Weight: 9 Grams

This connector is used with the LS1/LS6 Corvette TAC module, the LS1/LS6 Corvette accelerator pedal position sensor, and the LS type truck TAC module.

Mating Connectors

Part # Description Min Qty Price Qty
100 00067 100-00067 Aptiv (Delphi) 10 Way Black Metri-Pack 150 Sealed Male Connector – $9.00

This connector is used in the following assemblies:

Part # Description Min Qty Price Qty
100 00337 100-00337 Accelerator Pedal Connector Pigtail for LS1 LS6 Corvette – $18.00
100 00338 100-00338 1997-2005 Throttle Actuator Control Module (TAC) Connector Pigtail for GM 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V – $18.00
100 00992 100-00992 1999-2002 Throttle Actuator Control Module (TAC) Connector Pigtail for GM 1999-2002 LS-Series Truck SUV – $18.00
100 00730 100-00730 Cruise Control Module Connector Pigtail for Vortec and LS trucks and LS F-body – $45.00
tac_to_pedal_LS1_Corvette.jpg 100-00644 TAC to Pedal Harness for LS1 LS6 Corvette – $45.00
100 00645 100-00645 TAC to Pedal Harness for 04-05 CTS-V – $45.00
100 00643 100-00643 TAC to Pedal Harness for 2004-older GM Trucks – $45.00
tac to pedal 2004 older truck 100-00977 TAC to Pedal Harness for 2005 GM Trucks – $0.00 Item is not For Sale

Secondary Locks

Part # Description Min Qty Price Qty
100 00240 100-00240 Delphi 10 Way GRAY Metri-Pack 150 TPA – $1.00
100 00914 100-00914 Delphi 10 Way BLACK Metri-Pack 150 Conduit TPA – $1.00
100 00466 100-00466 Delphi 10 Way GRAY GT 150 TPA – $1.00
connector_lock_gray.jpg 100-00255 Delphi GRAY Metri-Pack 150 CPA fits many Delphi connectors – $0.80
cpa_blue_with_harness_ring.jpg 100-00548 Delphi BLUE Metri-Pack 150 Tether CPA with harness ring – $0.80

Terminals

Part # Description Min Qty Price Qty
100 00130 100-00130 Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 22-20 AWG Terminal 10 $0.27
100 00132 100-00132 Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal 10 $0.27

Cable Seals

Part # Description Min Qty Price Qty
100 00192 100-00192 Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm 10 $0.27
100 00194 100-00194 Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm 10 $0.27
100 00193 100-00193 Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm 10 $0.27

Plugs

Part # Description Min Qty Price Qty
100 00211 100-00211 Delphi Metri-Pack 150 Cavity Plug 10 $0.35
