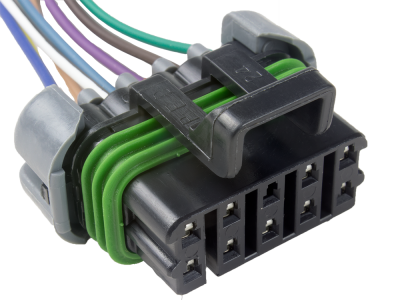

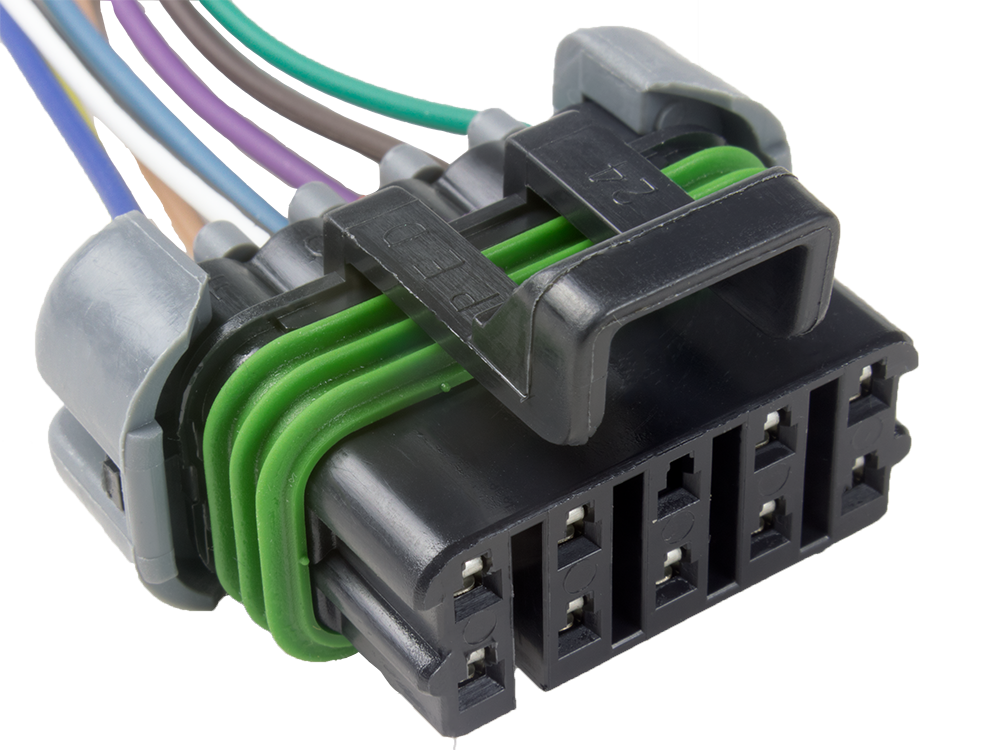

1999-2002 Throttle Actuator Control Module (TAC) Connector Pigtail
for GM 1999-2002 LS-Series Truck SUV
Part #: 100-00992
Attributes
- Engine Type:
- Wire Count: 10
- Connector Color: BLACK
- Application:
Dimensions
- Weight: 5 Ounces
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 10 wire Metri-Pack 150 connector replacement pigtail for Throttle Actuator Control Module (TAC) within 1999-2002 GM LS-Series Truck and SUV engine harnesses. This pigtail is for the Accelerator Pedal Position Sensor (APP) connection side of the TAC module. Assembled with 12 inch lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | 20 GA | GRY | LOW REFERENCE |
| B | 20 GA | PPL | LOW REFERENCE |
| C | 20 GA | LT BLU | APP SENSOR 2 SIGNAL |
| D | 20 GA | TAN | 5V REFERENCE |
| E | 20 GA | YEL/BLK | 5V REFERENCE |
| F | 20 GA | DK BLU | APP SENSOR 1 SIGNAL |
| G | 20 GA | WHT/BLK | 5V REFERENCE |
| H | - | - | NOT USED |
| J | 20 GA | BRN | LOW REFERENCE |
| K | 20 GA | DK GRN | APP SENSOR 3 SIGNAL |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT588 |
| GM | 12125676 |
| AIRTEX / WELLS | 1P1665 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00065 | Aptiv (Delphi) 10 Way Black Metri-Pack 150 Sealed Female Connector | – | $7.00 |
