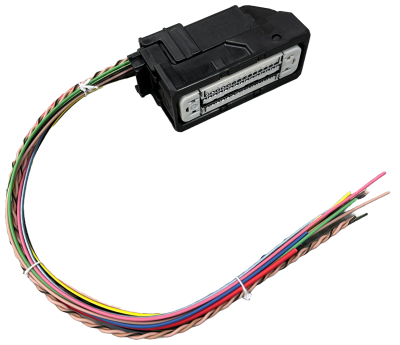

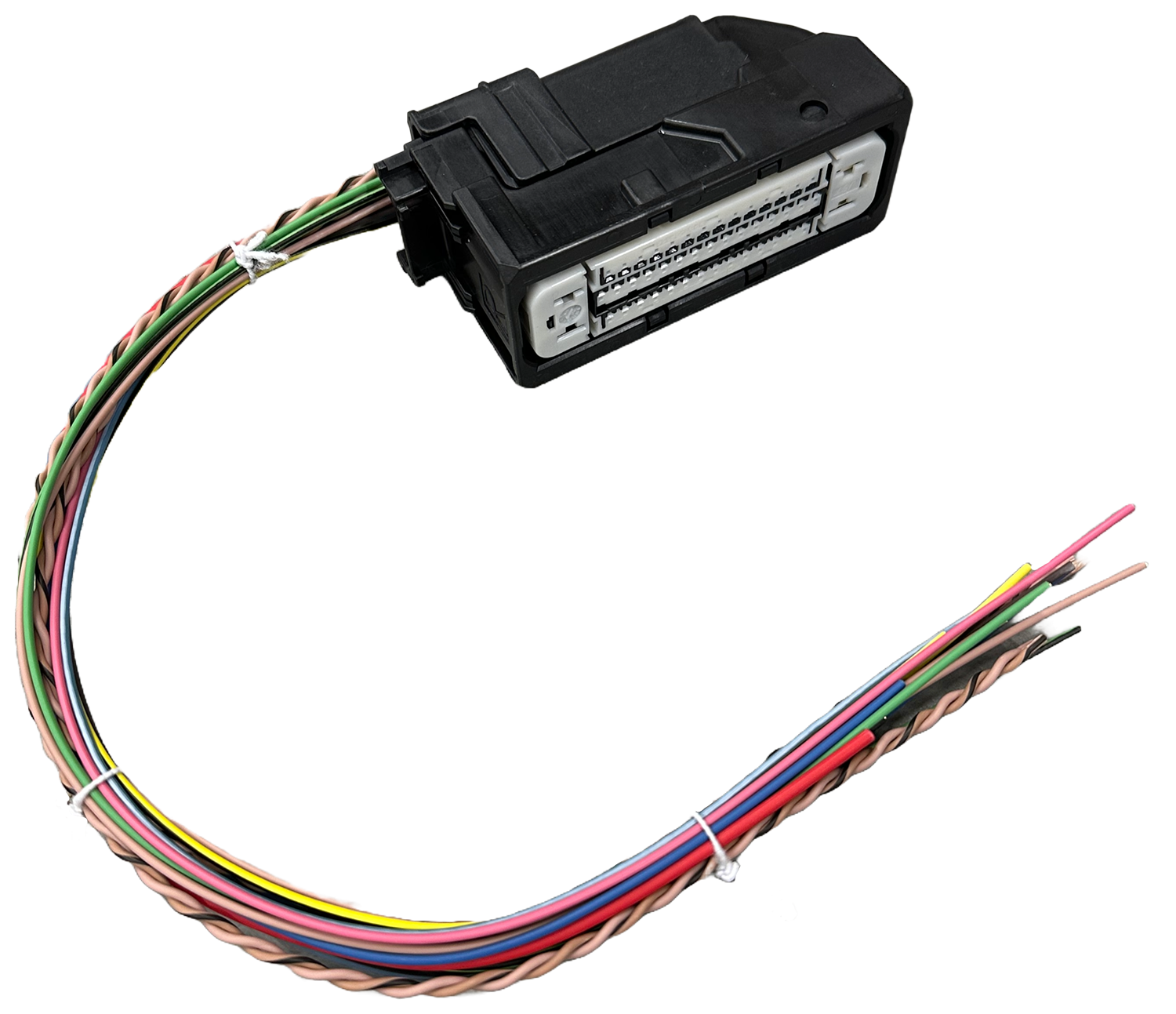

Trailer Brake Control Module EBCM TBCM Connector Pigtail
for 2008-2014 GM Full Size Truck (JL1 with 20 or 30 Series) or (JL1 with 10 Series and LU3)
Part #: 100-02763
Attributes
- Engine Type: LS (24x), LS (58x)
- Wire Count:
- Connector Color: BLACK
- Application: TBCM Module
Dimensions
- Weight: 1 Pound
- EBCM / TBCM Pigtail for 08-14 GM Truck with RPO Code JL1
- for use with Full Size 20 and 30 series trucks (2500 and 3500)
- for use with Full Size 10 series trucks (1500) with JL1 AND LU3 RPO CODES
- (1500 trucks must have both JL1 and LU3 RPO CODES)
-
- Not for use with 10 series trucks (No 1500s) without LU3 RPO
- replacement EBCM / TBCM pigtail for repair
- an aftermarket brake controller would need to be installed for vehicles without JL1 RPO
- also known as ITBC (Integrated Trailer Brake Controller)
- built using all Original Equipment (OE) materials
- OEM Connector 15491307
- Service Connector 89047377
- built using production crimp tooling
