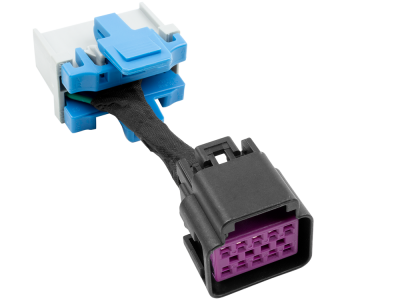

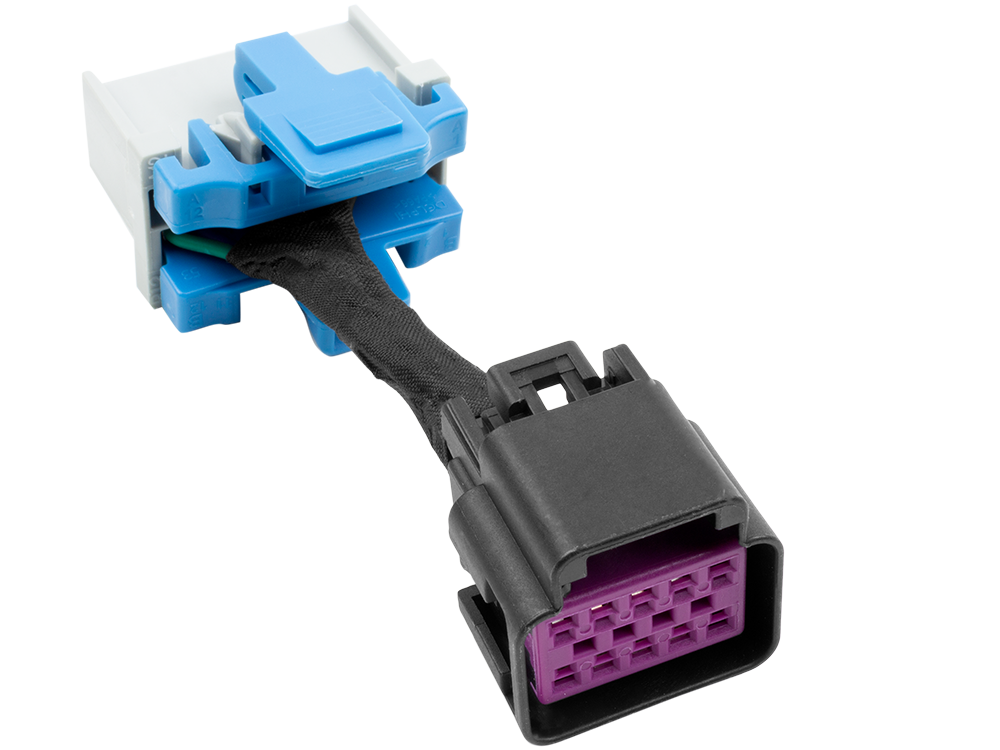

Pass-Through Harness J1939 Programming

for use with BenchForce™ PowerBlock Switch Assemblies

Part #: 100-01073

Dimensions

  • Weight: 5 Ounces

Supporting Documents

This pass-through harness is required for J1939 programming when using BenchForce™ PowerBlock switch assemblies.

  • The 24 pin connector end plugs into any of our PowerBlock switch assemblies.
  • The 10 pin connector end plugs into any BenchForce™ J1939 ECU programming harness.
  • The 10 pin connector end may alternatively plug into Y-Splitter J1939 harness P/N 100-01094. Y-Splitter harness is only necessary when adding an additional ECU on the bench.
