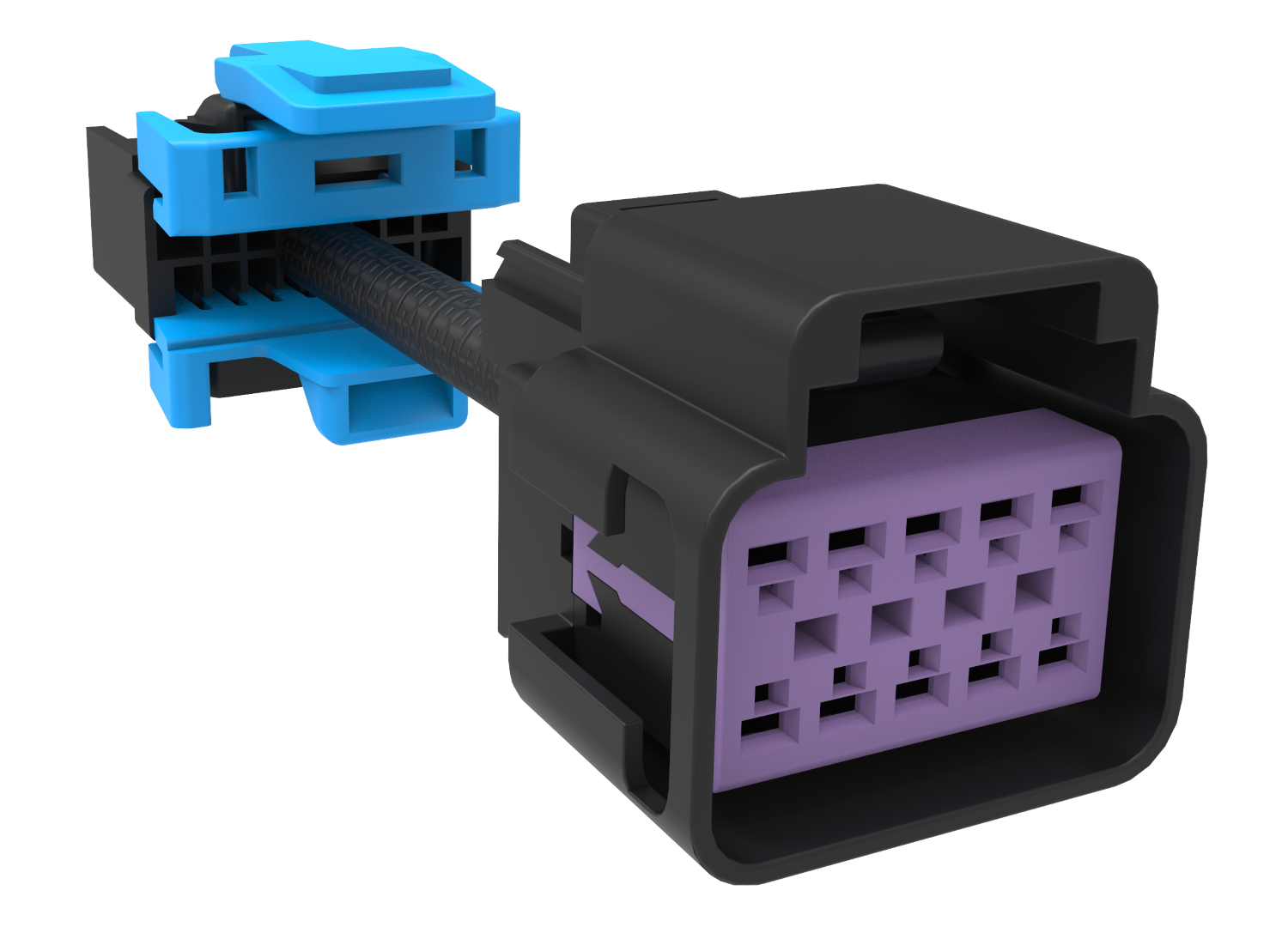

Pass-Through Harness for OBD-II Programming
for use with Professional Series 16 pin Switch Assemblies
Part #: 100-01032
Dimensions
- Weight: 2 Ounces
Supporting Documents
Our modular ECU benchtop programming harnesses provide a connection to the ECU (Engine Control Module, Transmission Control Module, Body Control Module, or any other on-board vehicle ECU) and a connection to one of our switch assembly pass-through harnesses.
This switch assembly pass-through harness is for use with our GM ECU programming harnesses. Simply connect any GM ECU programming extension harness into the 10 cavity female connector and the 16 cavity female connector to the switch assembly.
To power more than one ECU on the benchtop, a Y-Splitter harness is required. See EFI# 100-01031.
Switch Assembly Pass-Through Harness for GM ECUs Supports:
- J2411 GMLAN Low Speed at OBD-II pin 1
- J1850 VPW Class 2 Serial Data at OBD-II pin 2
- J2284 GMLAN High Speed at OBD-II pins 6 and 14
- Ground at OBD-II pins 4 and 5
- 12V Battery at OBD-II pin 16
- 12V Switched Ignition
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
140-00003 | Professional Series 16 Pin Switch Assembly *Discontinued Summer 2018* | – | $170.00 | Item is not For Sale |
