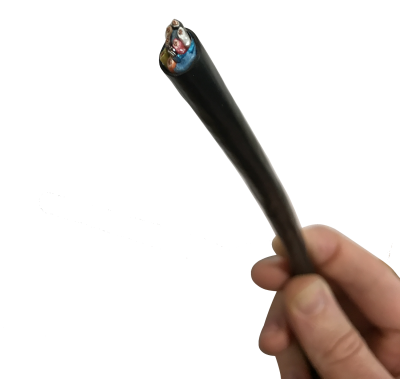

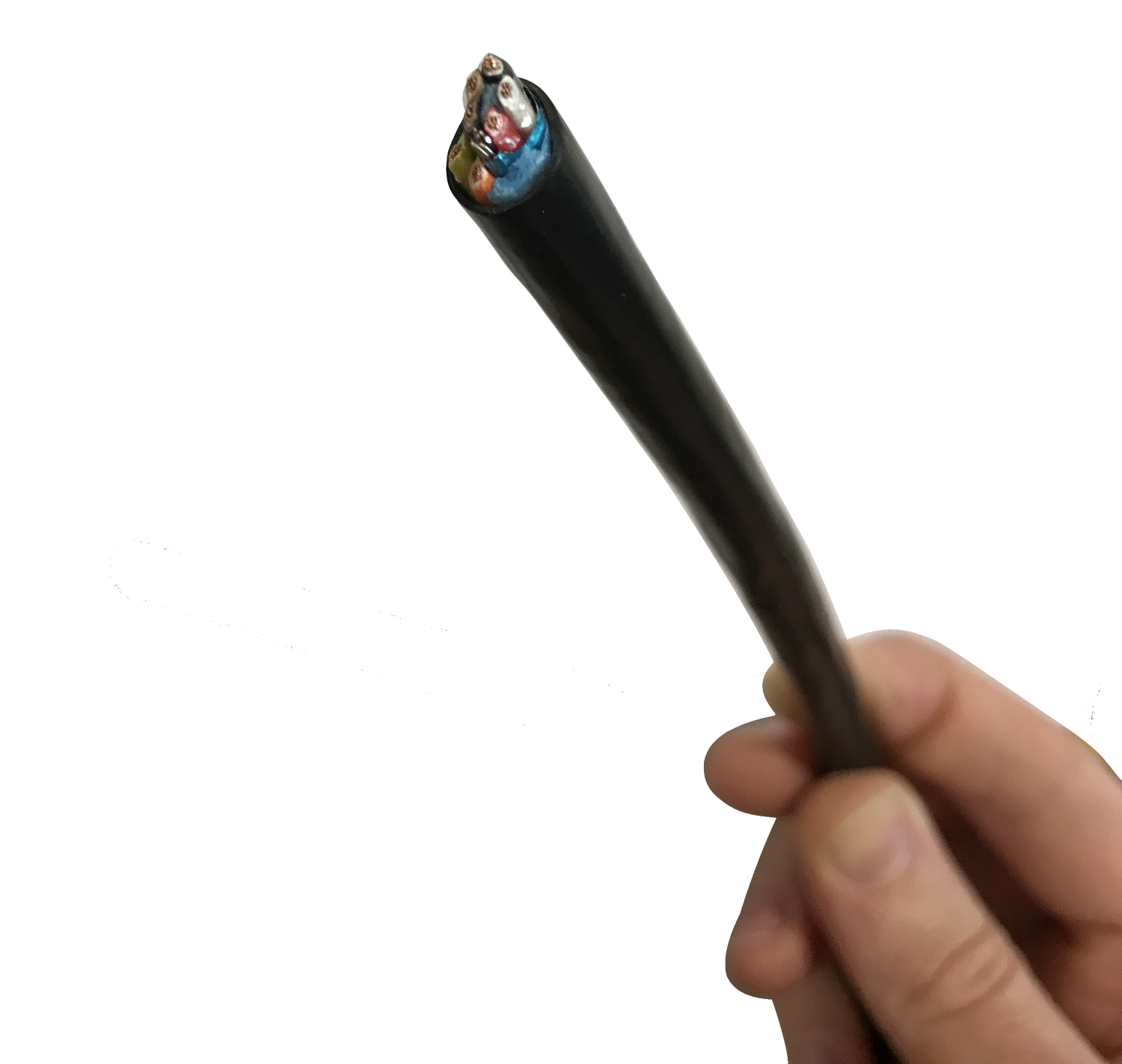

Multi Conductor Cable [20ga TXL (5) 20ga Drain] [18ga TXL (2)]

for use when building your own Holley EFI wideband O2 sensor harness

Part #: 101-00585

Dimensions

This specialty multi conductor cable assembly is for use when building your own Holley EFI harness for HP or Dominator ECUs.

Scroll down to browse all tooling and related harness assembly items for building your own wideband O2 sensor harness for your Holley EFI system.

Assembly steps:

Score PVC jacket with an X-ACTO® knife

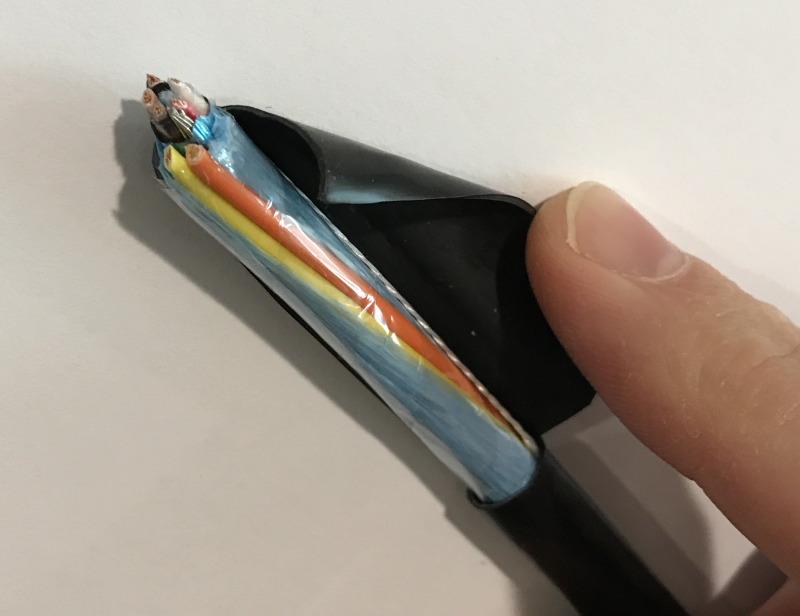

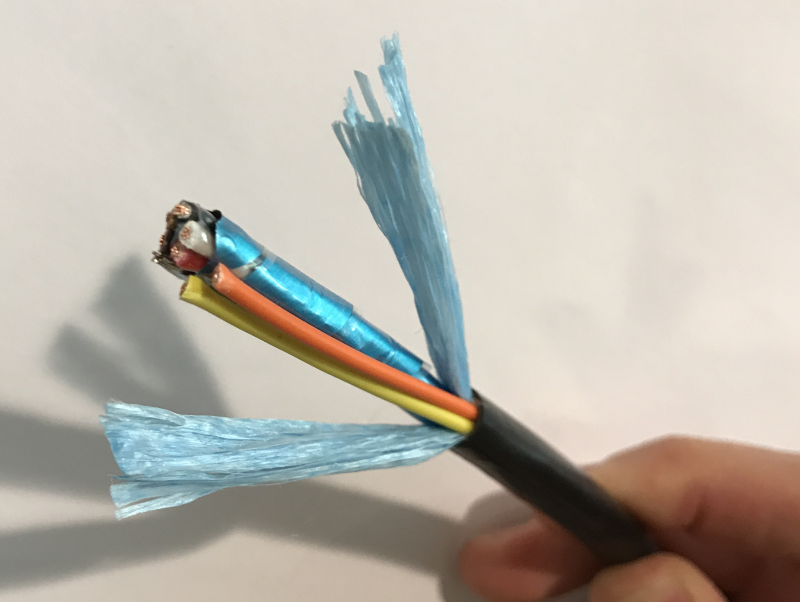

Peel away PVC jacket
Cut away plastic wrapper and outer filler

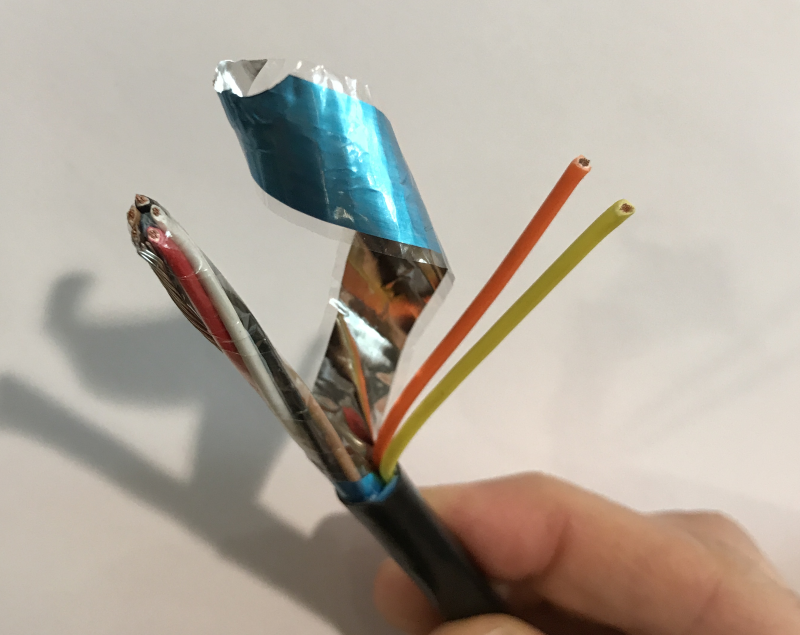

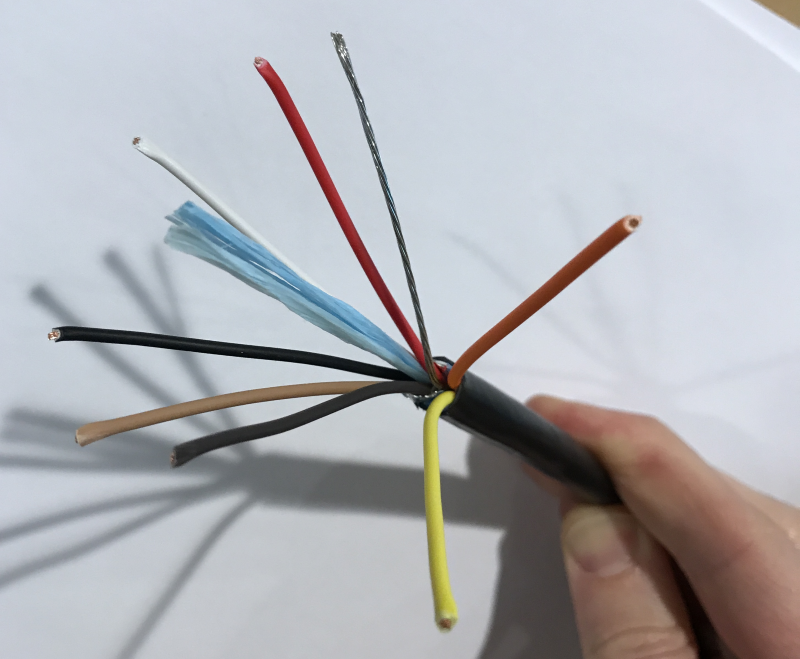

Peel and cut away foil shield and inner filler

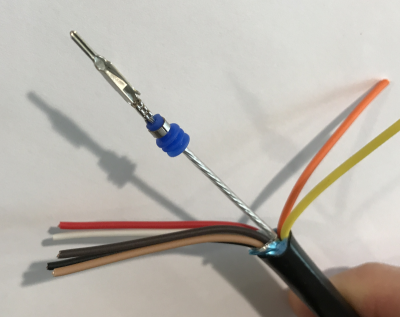

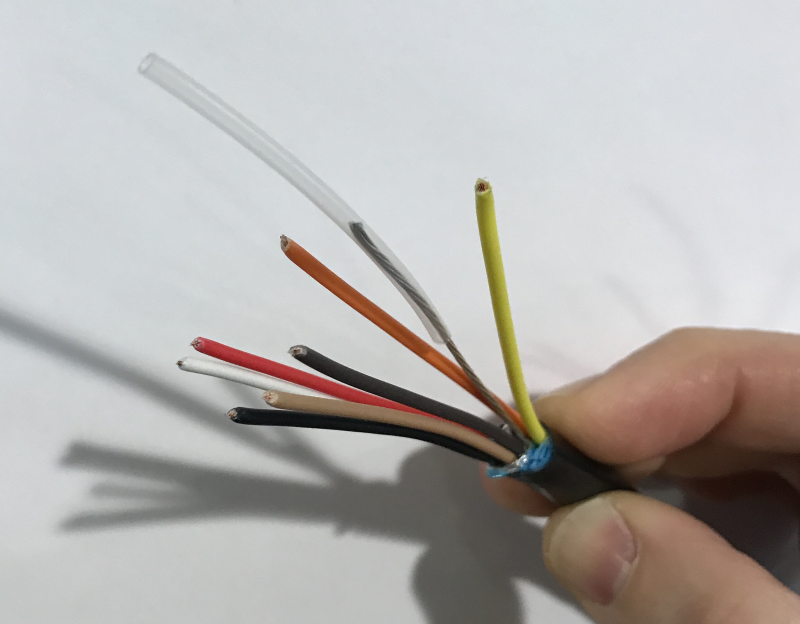

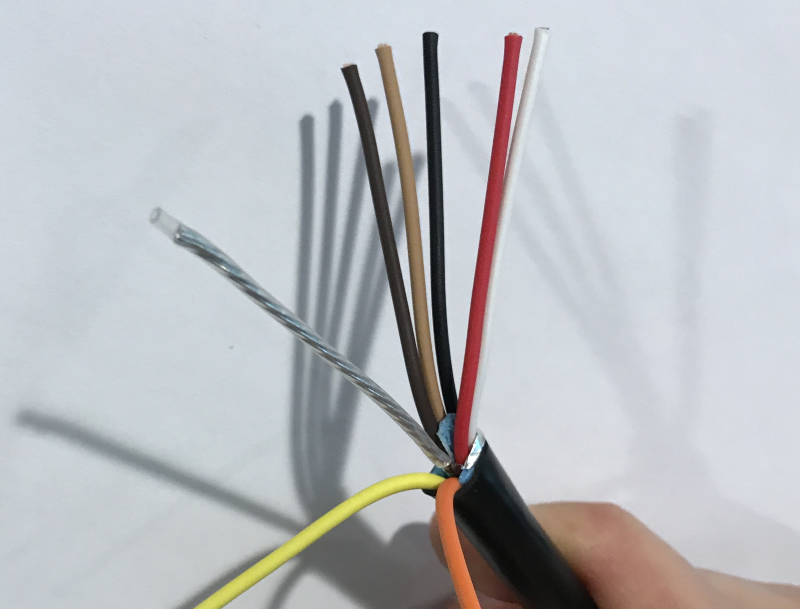

Install shrink tubing on 20 gauge drain wire to prevent fraying
Install adhesive-lined shrink tube (for use later)

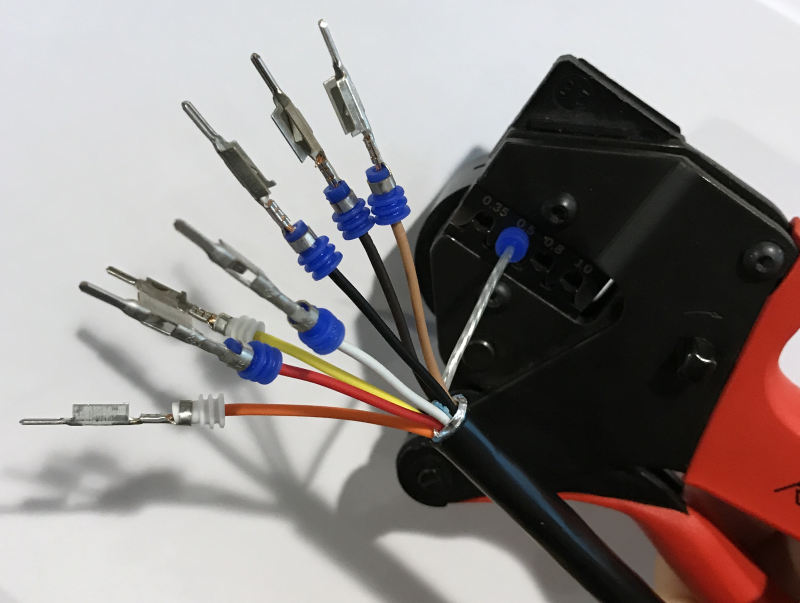

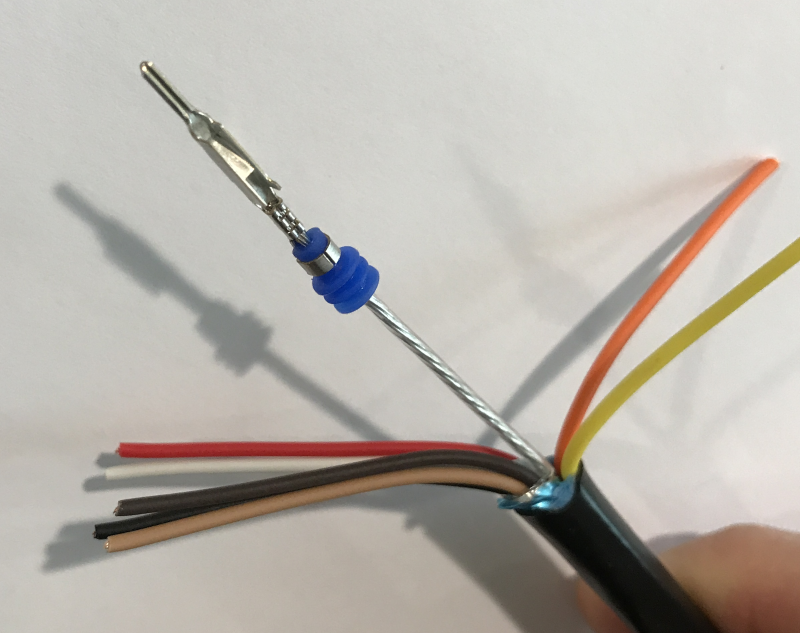

Crimp terminals using Rennsteig production hand tools

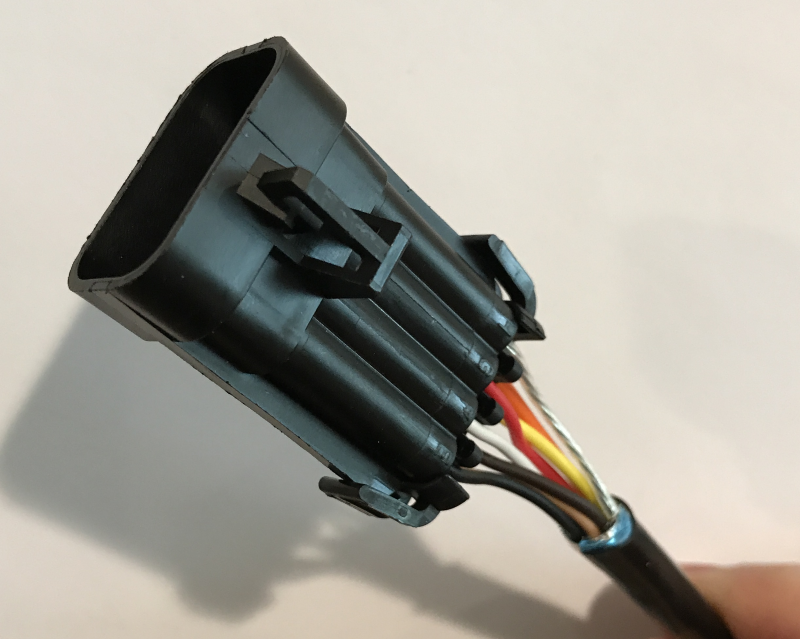

Install Delphi Metri-Pack 150 male connector (O2 sensor end) or AMP SuperSeal 1.0mm terminals (ECU end)

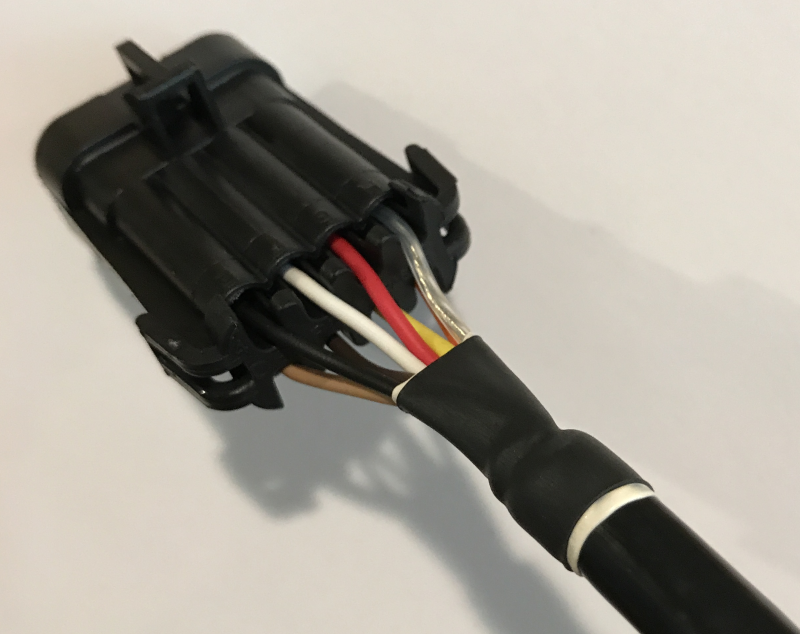

Heat shrink tube to finish assembly

Part #	Description	Min Qty	Price
130-00077	X-ACTO® Knife with protective safety cap	–	$7.50
624 000 3 RT	Rennsteig Crimp System Tool PEW 12 Hand Tool w/ black burnished finish (crimp die sets sold separately)	1	$133.90
624 1091 3 01 RT	Rennsteig Crimp Die Set 624 1091 3 01 RT CRIMP DIE SET for Superseal 1.0 Series	–	$336.98
624 1495 3 012 RT	Rennsteig Crimp Die Set 624 1495 3 012 RT CRIMP DIE SET for Male Metri-Pack 150 Tin Plated Terminal, Cable Range 0.35 - 1.00 mm2	–	$350.34
680-12094430	Rennsteig Terminal Removal Tool (compare to Delphi 12094430) for Metri-Pack 150/280/480/630/800 Terminals and More	1	$27.04

Part #	Description	Min Qty	Price	Qty
101-00584	1/16 Inch Clear Transparent Heat Shrink Tube Tubing 6 Inches Prevents Fraying also Strain Relief Insulation for 20ga Shielded Drain Wire	1	$0.95	Item is not For Sale
101-00587	9.0mm Expanded I.D. Adhesive-Lined Heat Shrink Tube Tubing FL-2 OE Quality Black Jacket with White Adhesive Liner	1	$1.50	Out of stock
100-00751	TE (AMP) Super Seal 1.0 Female Unsealed Gold (Au) 20 AWG Terminal	10	$0.78
100-00750	TE (AMP) Super Seal 1.0 Female Unsealed Gold (Au) 18-16 AWG Terminal	10	$0.78
100-00538	Aptiv (Delphi) 8 Way Black Metri-Pack 150 Sealed Male Connector	–	$6.00
100-00852	Delphi 8 Way BLACK Metri-Pack 150 TPA	–	$1.00
100-00548	Delphi BLUE Metri-Pack 150 Tether CPA with harness ring	–	$0.80
100-00192	Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm	10	$0.27
100-00194	Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm	10	$0.27
100-00134	Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 22-20 AWG Terminal	10	$0.27
100-00136	Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 20-18 AWG Terminal	10	$0.27
100-02105	Connector Kit for Bosch LSU 4.9 0 258 017 025 (17025) Wideband O2 Sensor for Holley Terminator X and Sniper Systems	–	$15.00
