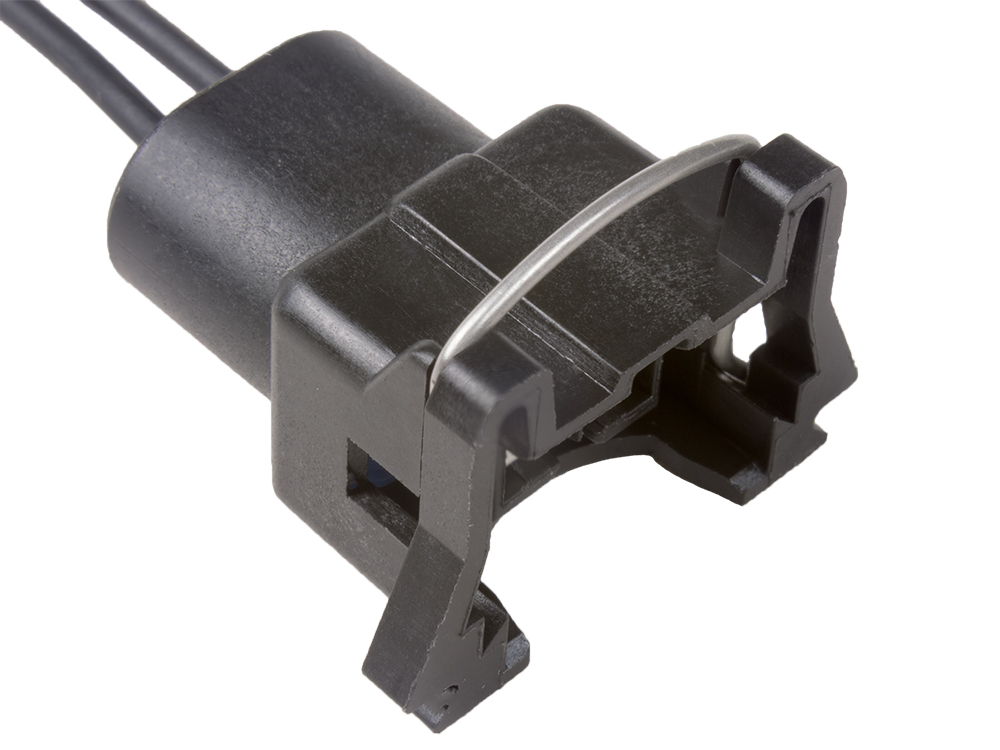

Fuel Injector EV1 Pigtail Bank 1 GM 5.0L TPI LB9 (85-89)
for GM TPI LT1 LT4 LS1 LS6 and many fuel injectors
Part #: 100-01243
Dimensions
- Weight: 14 Grams
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 2 wire Metri-Pack 280.1 connector replacement pigtail for many GM Fuel Injectors. Commonly used with many Multi-Port Fuel Injection MPFI engines. This is used with the Jetronic Minitimer EV1 type fuel injector. Assembled with 12 inch lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
---|---|---|---|
A | 18 GA | BLK | 12V IGNITION |
B | 18 GA | BLK w/ GRN | INJECTOR CONTROL |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
BRAND | PART NUMBERS |
---|---|
ACDELCO | PT113, PT2384 |
GM | 12085491, 88862303 |
STANDARD MOTOR PRODUCTS | SK25, HP3980 |
AIRTEX / WELLS | 1P1002 |
DORMAN | 85137 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00077 | Aptiv (Delphi) 2 Way Black Metri-Pack 280.1 Sealed Female Connector | – | $5.25 |
