EFI 24x Crank and Cam Signal Kit w/o CKP Sensor
for 1996-1997 LT1/LT4 Engines w/ Single Row Timing Set
Part #: 120-00116
Attributes
- Timing Cover: PRODUCTION GM
- Timing Set: SINGLE ROW CHAIN
- Water Pump: MECHANICAL DRIVE, ELECTRIC DRIVE
- Crank Snout Diameter: 1.245" (SBC/LT1)
- Crank Hub Seal Diameter: 1.760" (W/ LT1 HUB), 2.250" (W/ ATI HUB)
Dimensions
- Length: 12 inches
- Width: 9 inches
- Height: 3 inches
- Weight: 6 Pounds

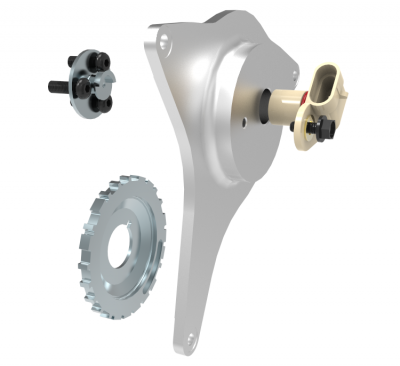

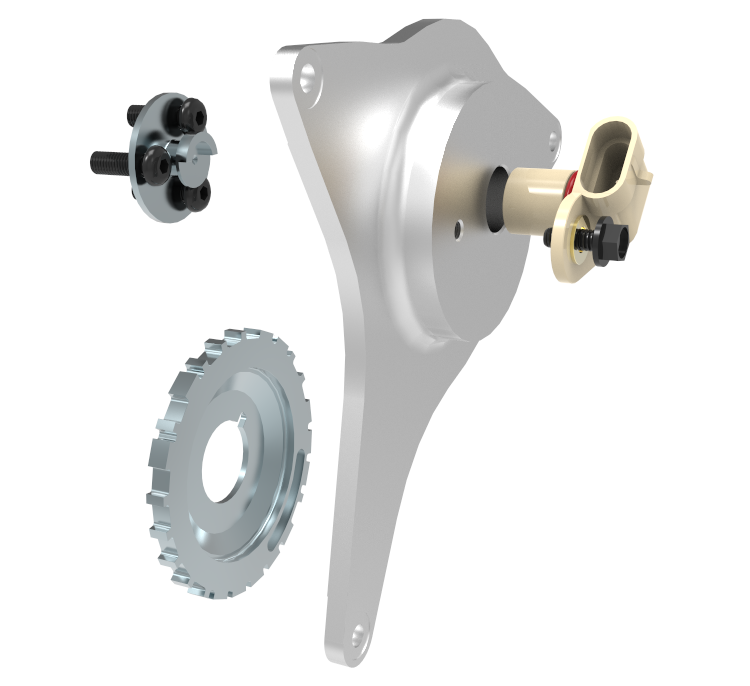

This EFI 24x™ kit is for use with any 1992-1997 LT1 engine and requires a 1996-1997 LT1 timing cover (not included) and single row timing set (not included). Includes EFI 24x crank reluctor, 1x cam reluctor, cam position sensor, and cam sensor housing. May be used with or without mechanical drive water pump, but must be used with a single row timing set. Requires a 1996-1997 LT1 timing cover or aftermarket timing cover with crank sensor boss. May be used with 1996-1997 LT1 crank sensor.
Associated Items
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
120-00220 | LT1 Camshaft Sensor Housing | – | $120.00 | |
|
110-00052 | ACDelco Camshaft Position CMP Sensor 213-3826 for Gen IV 24x 58x LS-Series Engines | – | $70.00 | |
|
120-00046 | EFI 1x Camshaft Reluctor for LT1/LT4 Engines | – | $115.00 | |
|
120-00070 | EFI 24x Crank Reluctor for Single Row Timing Set for SBC/LT1 Engines | – | $175.00 |
