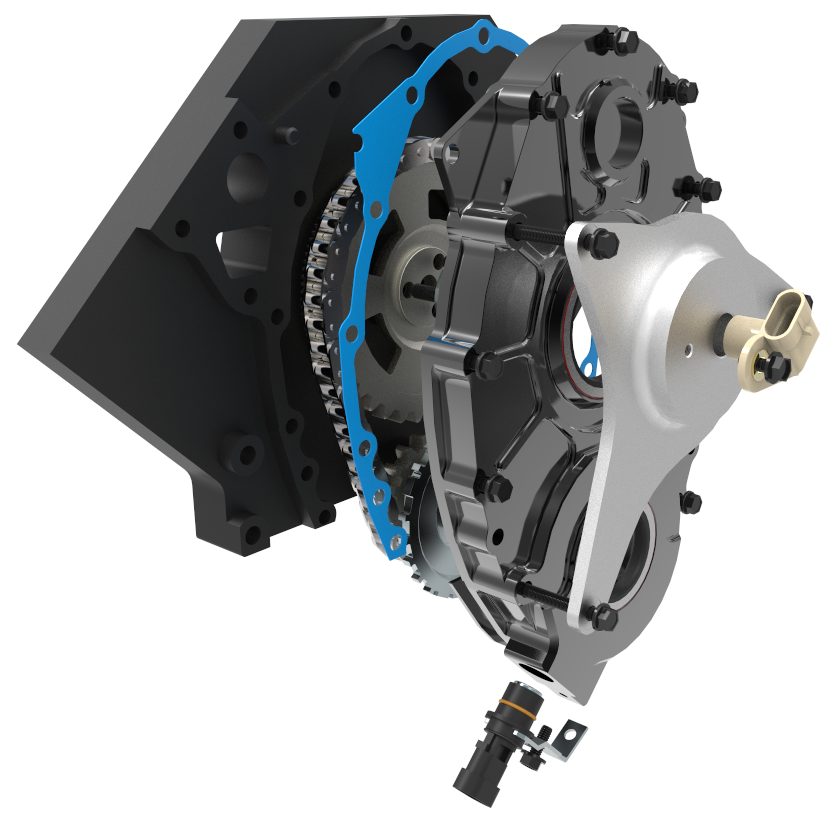

EFI 24x Conversion Kit (w/ Electric Water Pump)
for 1992-1997 LT1/LT4 Engines w/ Electric Water Pump
Part #: 120-00118
Attributes
- Timing Cover: BILLET ALUMINUM EFI
- Timing Set: SINGLE ROW CHAIN, DOUBLE ROW CHAIN
- Water Pump: ELECTRIC DRIVE
- Crank Snout Diameter: 1.245" (SBC/LT1)
- Crank Hub Seal Diameter: 1.760" (W/ LT1 HUB)
Dimensions
- Length: 14 inches
- Width: 14 inches
- Height: 11 inches
- Weight: 8 Pounds
This 24x LT1 conversion kit is for use with any 1992-1997 LT1 engine fitted with a single or double row timing set. Includes billet aluminum timing cover WITHOUT water pump drive provision, 24x crankshaft reluctor, camshaft sensor housing, 1x camshaft reluctor, CMP sensor, and CKP sensor. The included timing cover has clearance for a double row timing set and the included 24x crank reluctor has clearance for a double row timing set. However, we STRONGLY recommend using EFI# 120-00090 if you must use a double row timing set. If you are determined to use your own double row timing set, the cam sprocket thickness must measure 0.230 inches and the crank sprocket thickness must measure no more than 0.545 inches.
