Home > Harnesses & Connectors > Automotive Connectors > ECU Connector Kits

ECU Connector Kit for GM Gen III LS-Series PCMs 2003-Newer

Parts to build your own ECU connector assemblies

$124.99/ea
QtyPrice/ea
1$124.99
5$100.00
25$90.00

Part #: 100-01112

Attributes

  • OE Manufacturer: GM
  • Controller Type: ENGINE (ECM)

Dimensions

  • Weight: 1 Pound

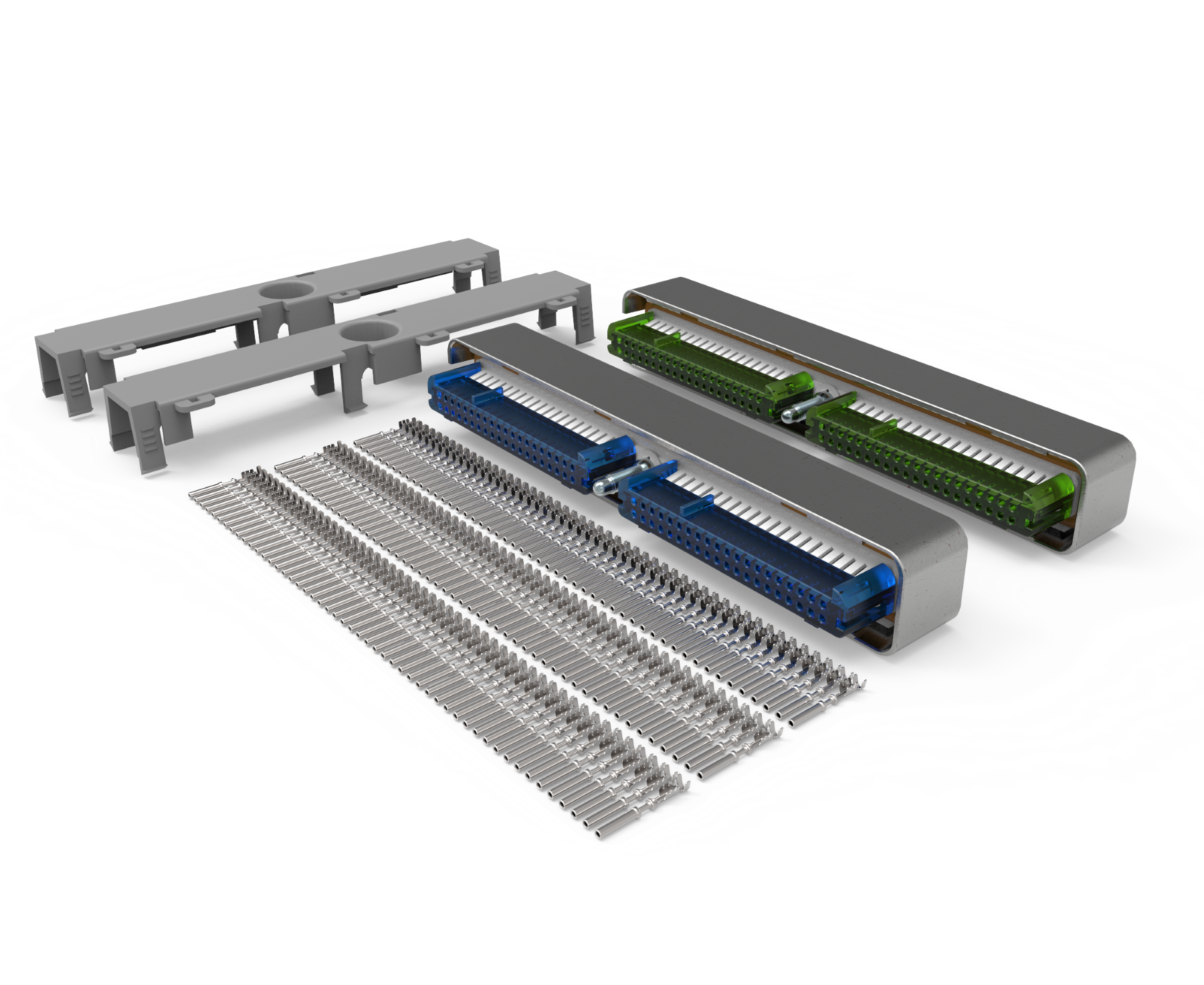

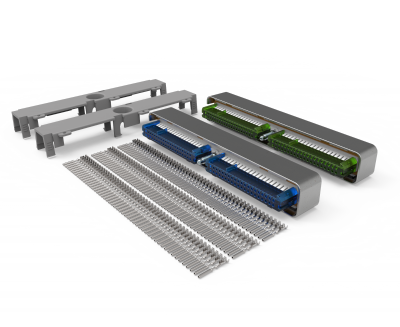

This ECU connector kit includes the following:

  • 2 connectors
  • 2 dress covers
  • 2 blue retainers
  • 2 green retainers
  • 50 pieces 18ga terminals
  • 100 pieces 22-20ga terminals

Tools

Part # Description Min Qty Price Qty
624 000 3 624 000 3 RT Rennsteig Crimp System Tool PEW 12 Hand Tool w/ black burnished finish (crimp die sets sold separately) 1 $133.90
GeneralDieSetImage 624 1534 3 01 RT Rennsteig Crimp Die Set 624 1534 3 01 RT CRIMP DIE SET Female Micro-Pack 100 Gold Plated Terminal, Cable Range 0.35 - 0.80 mm2 – $350.34
100w_terminal_removal_tool.jpg 130-00001 Delphi Micro-Pack 100W Terminal Removal Tool – $45.00

Out of stock
100w_crimper.jpg 130-00003 Delphi Micro-Pack 100W Crimp Tool – $135.00

Replacement Parts

Part # Description Min Qty Price Qty
100 00097 100-00097 Aptiv (Delphi) 80 Way Natural Micro-Pack 100W Sealed Female Connector – $22.50
LSx_dress_cover.jpg 100-00363 Delphi Micro-Pack 100W Dress Cover – $12.50
LSx_blue_retainer.jpg 100-00362 Delphi Micro-Pack 100W Retainer Blue for Gen III LS-Series PCMs – $5.00
100 01729 100-01729 EFI Micro-Pack 100W Retainer Green 15358857 for Gen III LS-Series PCMs – $3.00
100 00176 100-00176 Aptiv (Delphi) Micro-Pack 100W Female Unsealed Gold (Au) 22-20 AWG Terminal 10 $0.52
100 00177 100-00177 Aptiv (Delphi) Micro-Pack 100W Female Unsealed Gold (Au) 18 AWG Terminal 10 $0.52
