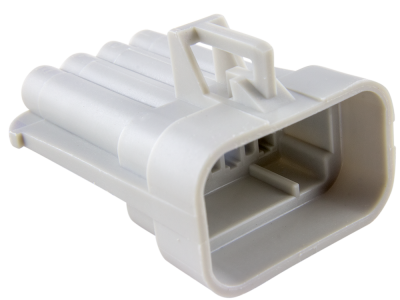

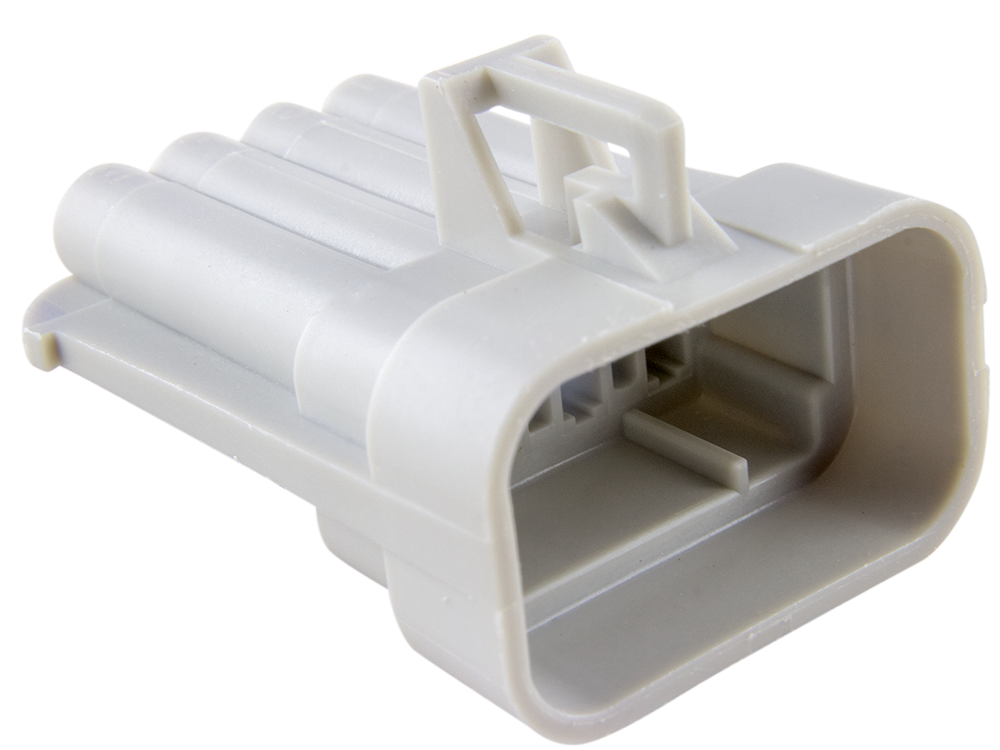

Aptiv (Delphi) 8 Way 7 Usable Gray Metri-Pack 150 Sealed Male Connector
Part #: 100-00063
Attributes
- COLOR: GRAY
- CAVITY COUNT: 7, 8
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150
Dimensions
- Weight: 12 Grams
This connector is used with all LS ignition coil harnesses and mates to the engine harness.
Mating Connectors
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00062 | Aptiv (Delphi) 8 Way 7 Usable Light Gray Metri-Pack 150 Sealed Female Connector | – | $10.00 |
This connector is used in the following assemblies:
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00509 | Coil Harness Connector Pigtail - Coil Side for LS-type engine harness | – | $15.50 |
Secondary Locks
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00224 | Delphi 8 Way BLACK Metri-Pack 150 TPA | – | $1.00 | ||
100-00852 | Delphi 8 Way BLACK Metri-Pack 150 TPA | – | $1.00 | ||
100-00859 | Delphi 8 Way BLUE Metri-Pack 150 TPA | – | $1.00 | ||
100-00255 | Delphi GRAY Metri-Pack 150 CPA fits many Delphi connectors | – | $0.80 | ||
100-00548 | Delphi BLUE Metri-Pack 150 Tether CPA with harness ring | – | $0.80 |
Clips
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00218 | Attaching Clip - Gray | 10 | $0.50 | ||
100-00219 | Clip - Metal | – | $0.75 | ||
100-00490 | Metal Attaching Clip | – | $1.25 |
Terminals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00134 | Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.27 | ||
100-00136 | Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 20-18 AWG Terminal | 10 | $0.27 |
Cable Seals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00192 | Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm | 10 | $0.27 | ||
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 | ||
100-00193 | Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm | 10 | $0.27 |
Plugs
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00211 | Delphi Metri-Pack 150 Cavity Plug | 10 | $0.35 |
