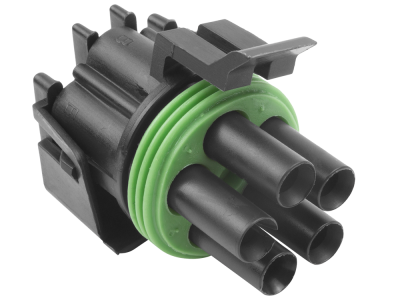

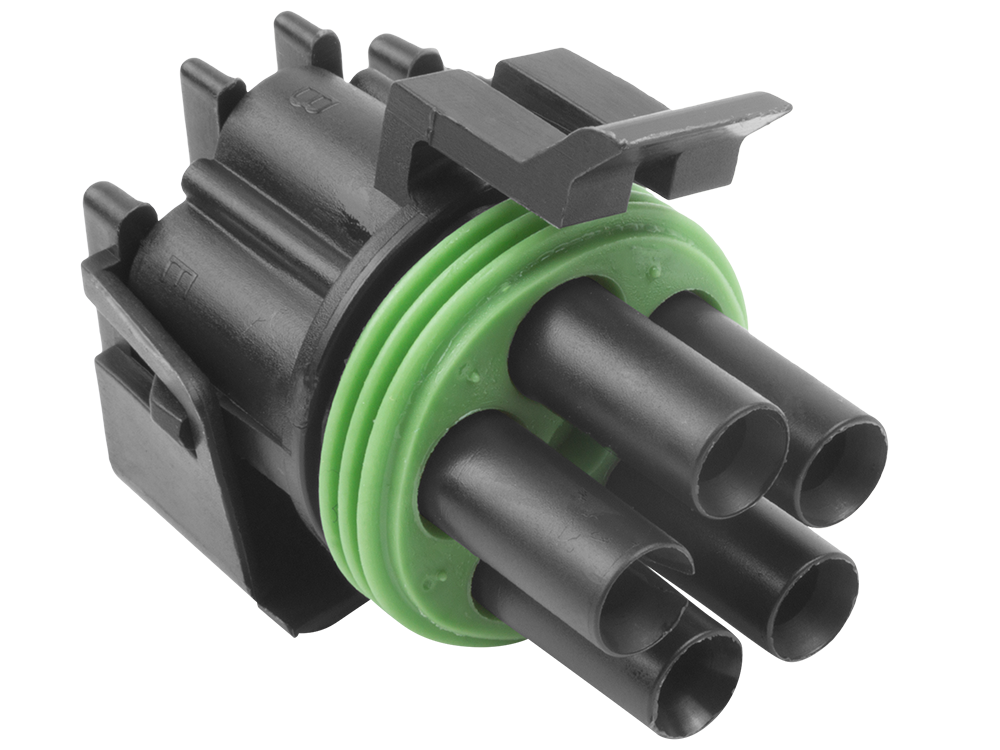

Aptiv (Delphi) 5 Way Black Weather Pack Tower Sealed Male Connector

$12.00/ea
QtyPrice/ea
1$12.00
5$8.86

Part #: 100-00118

Attributes

  • COLOR: BLACK
  • CAVITY COUNT: 5
  • SEALED: SEALED
  • MANUFACTURER: DELPHI
  • FAMILY: WEATHER PACK
  • SERIES: TOWER

Dimensions

  • Weight: 10 Grams

This connector is used with the 4L60 (not 4L60E) transmissions.

This connector is used in the following assemblies:

Part # Description Min Qty Price Qty
100 00303 100-00303 4L60 Transmission Connector Pigtail for 5-wire 4L60 transmission – $18.00

Terminals

Part # Description Min Qty Price Qty
100 00347 100-00347 Aptiv (Delphi) Weather Pack Male Sealed Tin (Sn) 24-22 AWG Terminal 10 $0.45
100 00185 100-00185 Aptiv (Delphi) Weather Pack Male Sealed Tin (Sn) 20-18 AWG Terminal 10 $0.28
100 00186 100-00186 Aptiv (Delphi) Weather Pack Male Sealed Tin (Sn) 16-14 AWG Terminal 10 $0.28
100 00346 100-00346 Aptiv (Delphi) Weather Pack Male Sealed Tin (Sn) 14-12 AWG Terminal 10 $0.45
100 00713 100-00713 Aptiv (Delphi) Weather Pack Female Sealed Tin (Sn) 22 AWG Terminal 10 $0.45
100 00183 100-00183 Aptiv (Delphi) Weather Pack Female Sealed Tin (Sn) 20-18 AWG Terminal 10 $0.28
100 00184 100-00184 Aptiv (Delphi) Weather Pack Female Sealed Tin (Sn) 16-14 AWG Terminal 10 $0.28
100 00345 100-00345 Aptiv (Delphi) Weather Pack Female Sealed Tin (Sn) 14-12 AWG Terminal 10 $0.45

Cable Seals

Part # Description Min Qty Price Qty
100 00779 100-00779 Delphi Metri-Pack 280 & Weather-Pack Cable Seal RED for Cable Diameters 1.70-1.29mm 10 $0.30
100 00198 100-00198 Delphi Metri-Pack 280 & Weather-Pack Cable Seal PURPLE for Cable Diameters 2.15-1.60mm 10 $0.30
100 00199 100-00199 Delphi Metri-Pack 280 & Weather-Pack Cable Seal TAN for Cable Diameters 2.42-2.03mm 10 $0.30
100 00197 100-00197 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GREEN for Cable Diameters 2.85-2.03mm 10 $0.30
100 00196 100-00196 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GRAY for Cable Diameters 3.49-2.81mm 10 $0.30
100 00195 100-00195 Delphi Metri-Pack 280 & Weather-Pack Cable Seal BLUE for Cable Diameters 4.30-3.45mm 10 $0.30

Plugs

Part # Description Min Qty Price Qty
100 00212 100-00212 Delphi Metri-Pack 280 Cavity Plug 5 $0.45
