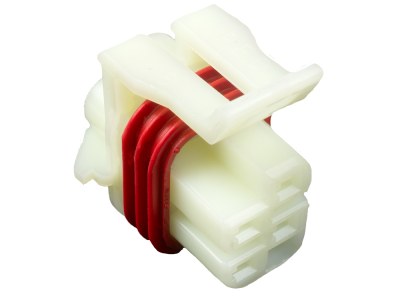

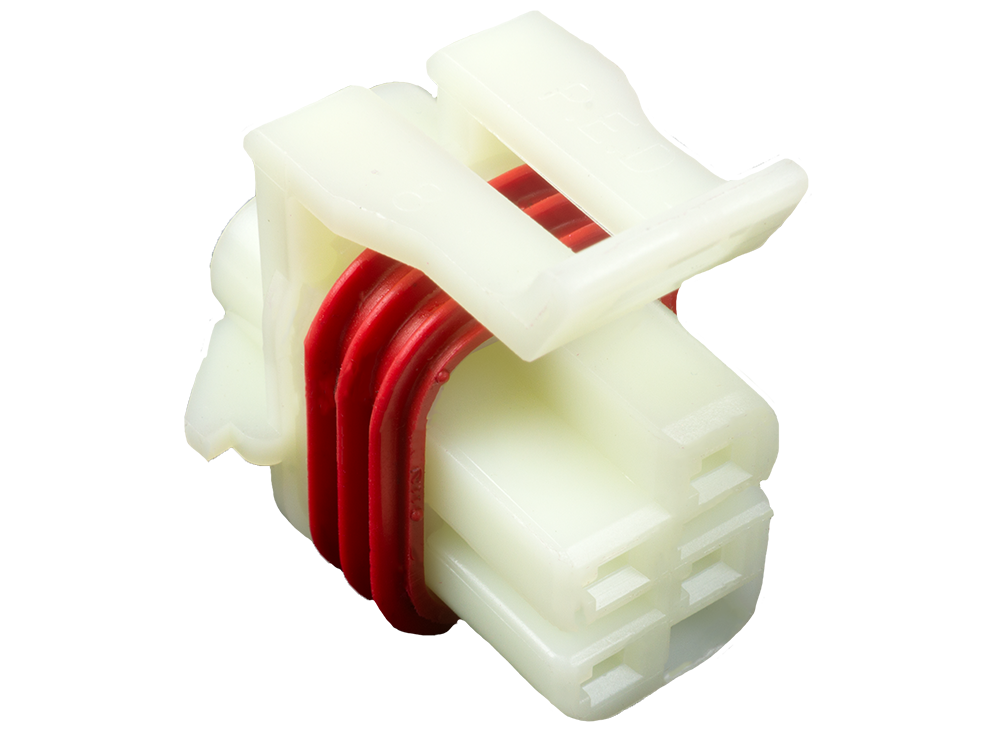

Aptiv (Delphi) 4 Way Cream Metri-Pack 150 Sealed Female Connector
Part #: 100-00412
Attributes
- COLOR: CREAM
- CAVITY COUNT: 4
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150
Dimensions
- Weight: 4.56 Grams
This connector is used with the 2004 and older gear selector switch on the 4L60E and 4L80E transmissions.
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00330 | Gear Selector Switch Connector Pigtail for 4L60E 4L80E | – | $20.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00411 | Delphi 4 Way BLACK Metri-Pack 150 TPA | – | $1.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00130 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.27 | |
|
100-00132 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal | 10 | $0.27 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00192 | Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm | 10 | $0.27 | |
|
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 | |
|
100-00193 | Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm | 10 | $0.27 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00211 | Delphi Metri-Pack 150 Cavity Plug | 10 | $0.35 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
110-00041 | Gear Select Switch 2003-Older 4L60E and 4L80E Transmissions | – | $72.50 | Item is not For Sale |
