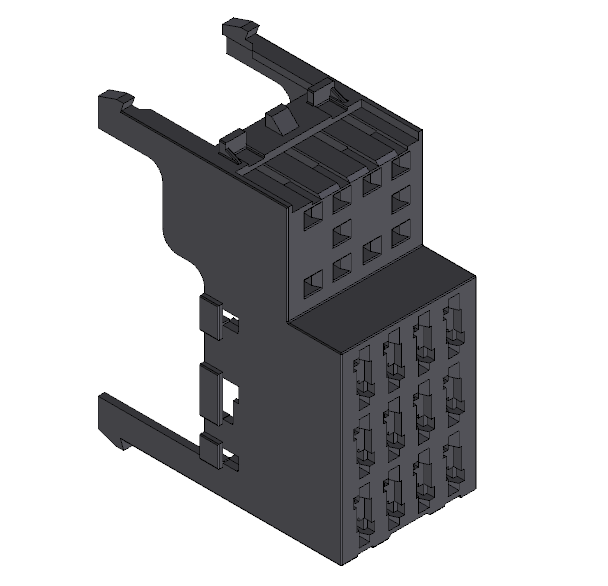

Aptiv (Delphi) 34 Way Black Metri-Pack 280 Unsealed Electrical Center

Qty	Price/ea
1	$15.00
5	$12.00

Part #: 100-00902

Attributes

COLOR: BLACK
CAVITY COUNT: 34
SEALED: UNSEALED
MANUFACTURER: DELPHI
FAMILY: METRI-PACK
SERIES: 280

Dimensions

Weight: 1 Ounce

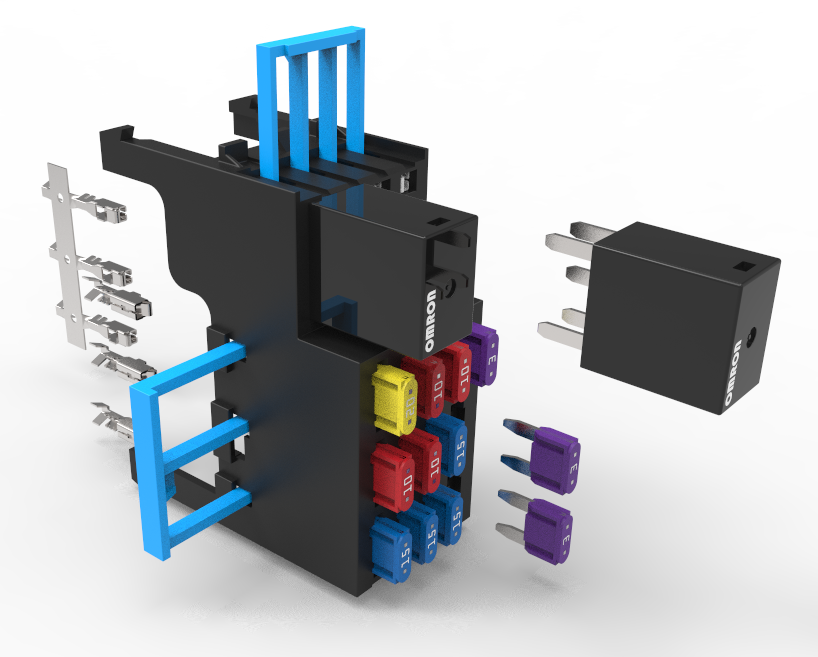

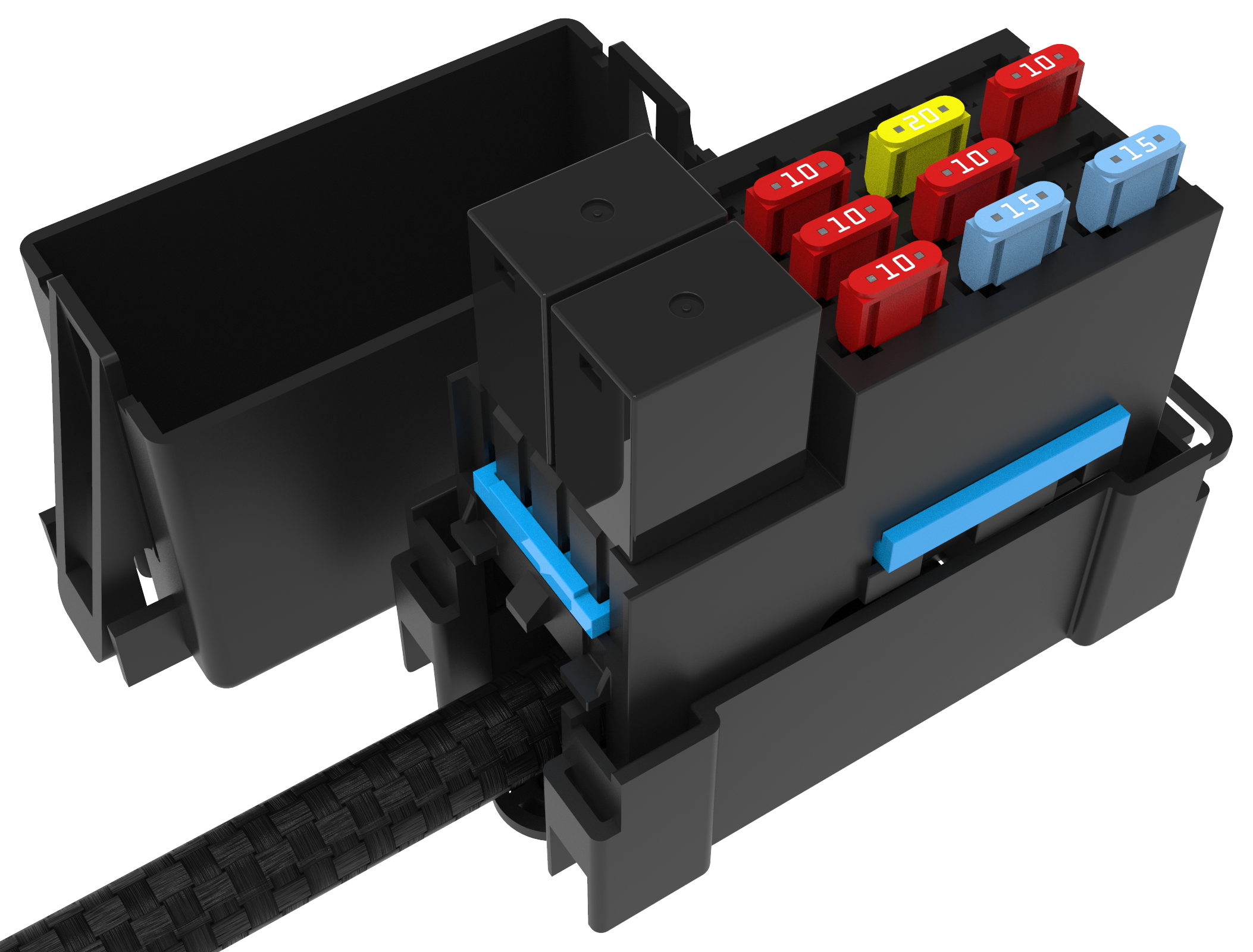

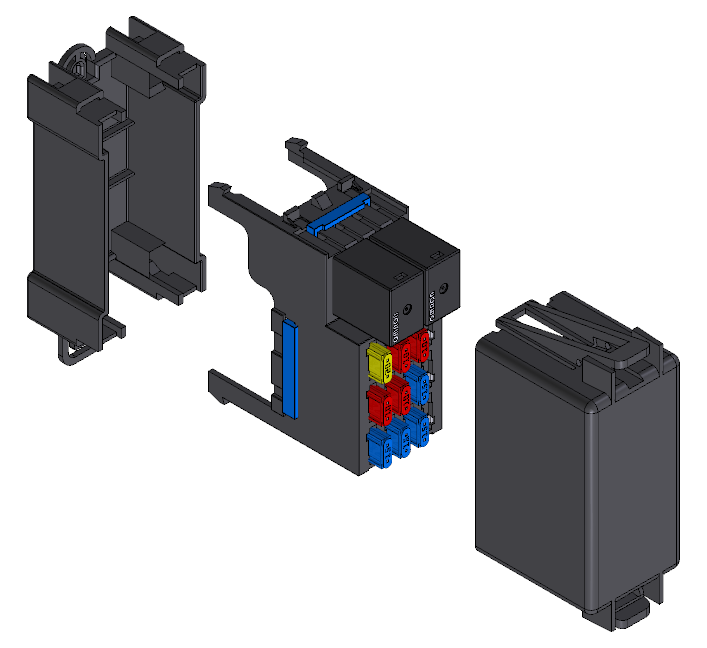

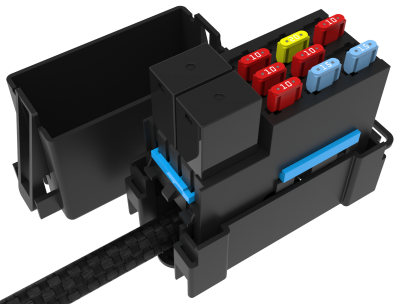

Additional product images are for representation purposes only. P/N 100-00902 includes only the electrical center connector. All other items are available separately.

IMPORTANT! TERMINAL SELECTION DETAILS:
This electrical center requires two types of Metri-Pack 280 terminals.

Connector cavities for the relays require Metri-Pack 280 tangless unsealed terminals.

Connector cavities for the fuses require Metri-Pack 280 bus bar terminals. You can bus up to three fuses per row. The other side of the fuses require singulated bus bar terminals. You cannot use any other type of terminal to substitute for the singulated bus bar. Don't miss this detail when ordering.

TOOLING
There are no handheld crimping solutions for Metri-Pack 280 bus bar terminals. EFI Connection uses a crimping press with an applicator that receives interchangeable punches and anvils to crimp and singulate Metri-Pack 280 bus bar terminals. Due to setup time, we do not offer a service to crimp these terminals.

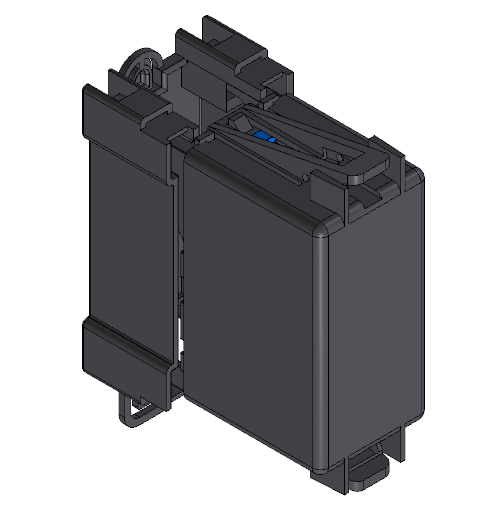

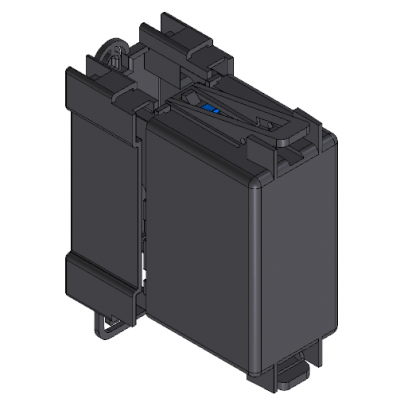

Dress Cover

	Part #	Description	Min Qty	Price	Qty
	100-00903	Dress Cover - Modular Electrical Center	–	$7.00
	100-00904	Wire Dress - Modular Electrical Center Base	–	$7.50

Secondary Locks

	Part #	Description	Min Qty	Price	Qty
	100-00900	Metri-Pack 280 Comb Blue - Relays	–	$0.75
	100-00901	Metri-Pack 280 Comb Blue - Fuses	–	$0.75

Terminals

Part #	Description	Min Qty	Price
100-00707	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed Tin (Sn) 22-20 AWG Terminal	–	$0.45
100-00708	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed Tin (Sn) 18-16 AWG Terminal	–	$0.45
100-00890	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed Tin (Sn) 16-14 AWG Terminal	–	$0.45
100-00891	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed Tin (Sn) 12 AWG Terminal	–	$0.45
100-00895	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed () 22-20 AWG Terminal	–	$0.95
100-00894	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed () 18-16 AWG Terminal	–	$0.95
100-00893	Aptiv (Delphi) Metri-Pack 280 Female Unsealed 14-12 AWG Terminal	–	$0.95
100-00896	Aptiv (Delphi) Metri-Pack 280 Tangless Female Unsealed () 10-8 AWG Terminal	–	$0.95

Associated Items

Part #	Description	Min Qty	Price
100-02190	Song Chuan ISO 280 Automotive Relay 12VDC	–	$7.50
100-00434	2 Amp Mini Fuse	–	$1.50
100-00435	3 Amp Mini Fuse	–	$1.50
100-00436	4 Amp Mini Fuse	–	$1.50
100-00437	5 Amp Mini Fuse	–	$1.50
100-00438	7.5 Amp Mini Fuse	–	$1.50
100-00439	10 Amp Mini Fuse	–	$1.50
100-00440	15 Amp Mini Fuse	–	$1.50
100-00441	20 Amp Mini Fuse	–	$1.50
100-00442	25 Amp Mini Fuse	–	$1.50
100-00443	30 Amp Mini Fuse	–	$1.50
