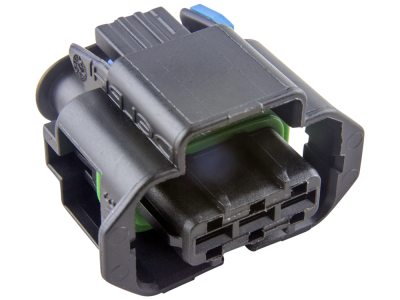

Aptiv (Delphi) 3 Way Black DS 2.8 JPT Sealed Female Connector
Part #: 100-00628
Attributes
- COLOR: BLACK
- CAVITY COUNT: 3
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: DS
- SERIES: 2.8
Dimensions
- Weight: 5.7 Grams
This connector is used with late LS engines equipped with a Bosch MAP sensor. Will not fit early LS engine MAP sensor. Known to fit GM P/N 55573248 and GM P/N 12592525.
Mating Connectors
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00853 | Bosch 3 Way Black Kompakt 2.8 Sealed Male Connector | – | $10.00 |
This connector is used in the following assemblies:
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00325 | MAP Sensor Connector Pigtail for LS-series with Bosch sensor | – | $15.00 |
Dress Cover
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00885 | Bosch Rubber Boot - Conduit Dress - 3 and 4 way Connectors | – | $7.75 |
Secondary Locks
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00864 | Bosch 3 Way BLACK JPT Timer 2.8 TPA | – | $1.75 |
Terminals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00123 | Aptiv (Delphi) Timer 2.8 JPT Female Sealed Tin (Sn) 20-16 AWG Terminal fits Bosch alternator connector | 4 | $0.40 |
Cable Seals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00192 | Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm | 10 | $0.27 | ||
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 | ||
100-00193 | Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm | 10 | $0.27 |
