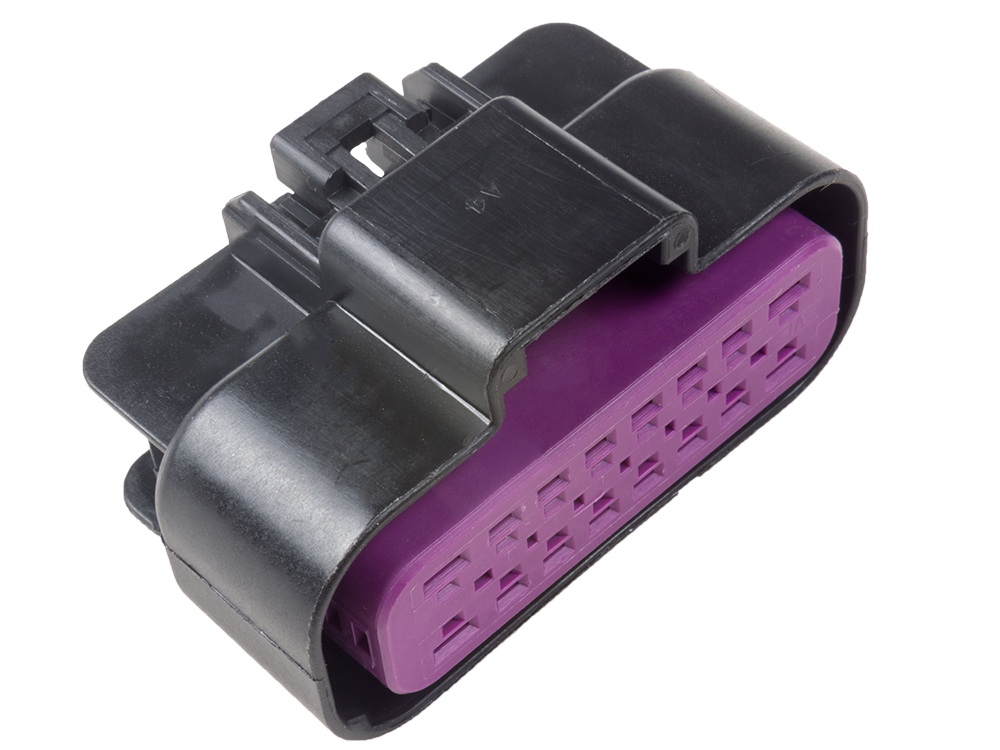

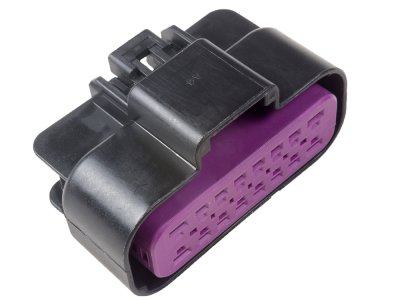

Aptiv (Delphi) 16 Way Black GT 150 280 Female Sealed Connector
Part #: 100-00495
Attributes
- COLOR: BLACK
- CAVITY COUNT: 16
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: GT
- SERIES: 150, 280, MIXED
Dimensions
- Weight: 18.22 Grams
This connector accepts 12 GT 150 series terminals and 4 GT 280 series terminals.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00494 | Aptiv (Delphi) 16 Way Black GT 150 280 Male Sealed Connector | – | $11.75 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00493 | Delphi 16 Way PURPLE GT 150 Mixed TPA | – | $1.00 | |
|
100-00243 | Delphi GRAY GT 150 Axial CPA | – | $0.50 | |
|
100-00552 | Delphi PURPLE GT 150 Tether CPA with harness ring | – | $0.75 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00124 | Aptiv (Delphi) GT 150 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.30 | |
|
100-00125 | Aptiv (Delphi) GT 150 Female Sealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.30 | |
|
100-00423 | Aptiv (Delphi) GT 280 Female Sealed Tin (Sn) 18-16 AWG Terminal | 5 | $0.75 | |
|
100-00528 | Aptiv (Delphi) GT 280 Female Sealed Tin (Sn) 14-12 AWG Terminal | 5 | $0.75 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00190 | Delphi GT 150 Cable Seal WHITE for Cable Diameters 1.90-1.20mm | 10 | $0.28 | |
|
100-00189 | Delphi GT 150 Cable Seal BLUE for Cable Diameters 2.40-1.86mm | 10 | $0.28 | |
|
100-00367 | Delphi GT 280 Cable Seal YELLOW for Cable Diameters 2.40-1.86mm | 5 | $0.35 | |
|
100-00526 | Delphi GT 280 Cable Seal TAN for Cable Diameters 3.20-2.50mm | 5 | $0.35 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00208 | Delphi GT 150 Cavity Plug | 10 | $0.35 | |
|
100-00210 | Delphi GT 280 Cavity Plug | 5 | $0.40 |
Tools
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
680-12094429 | Rennsteig Terminal Removal Tool (compare to Delphi 12094429) for GT 150/280 and Metri-Pack 150/280/630 Terminals and More | 1 | $24.57 |
