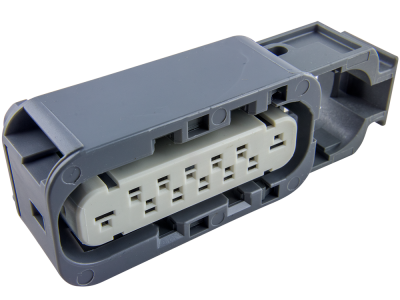

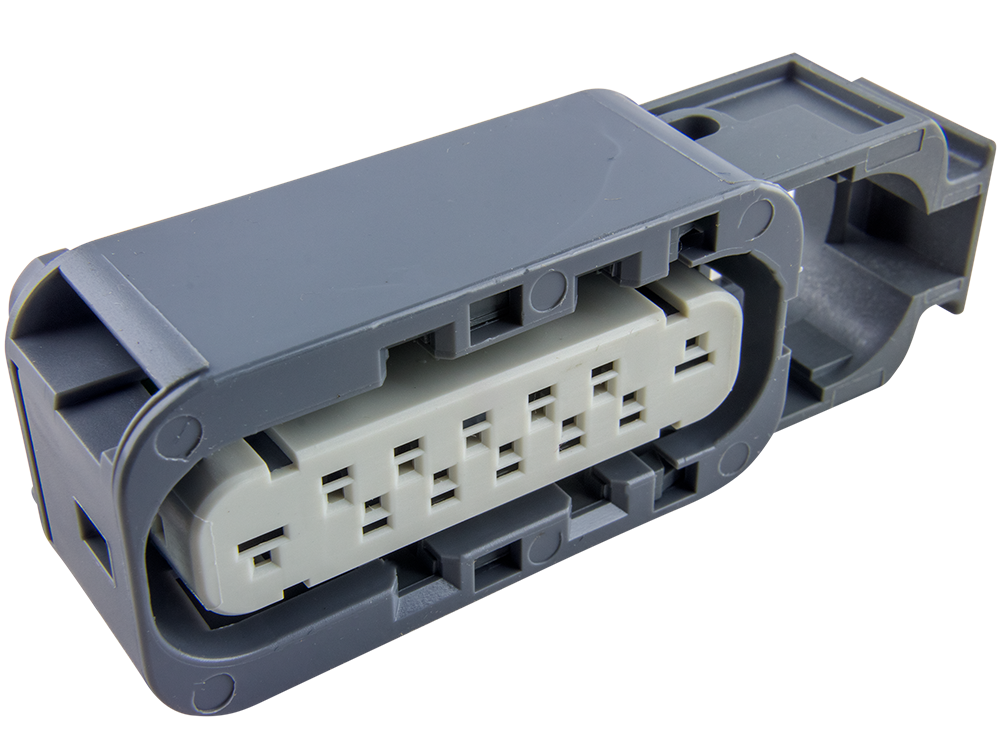

Aptiv (Delphi) 12 Way 11 Usable Medium Gray GT 150 280 Sealed Female Connector
Part #: 100-00030
Attributes
- COLOR: GRAY
- CAVITY COUNT: 12, 11
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: GT
- SERIES: 150, 280, MIXED
Dimensions
- Weight: 21 Grams
This connector is used with 2005 and newer gear selector switches.
This connector is used in the following assemblies:
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00486 | Gear Selector Switch Connector Pigtail for 04-newer GM | – | $28.00 |
Dress Cover
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00360 | Delphi GT Mixed Dress Cover | – | $7.50 |
Secondary Locks
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00252 | Delphi 12 Way WHITE GT 150 Mixed TPA for Gear Selector Switch | – | $2.00 | ||
100-00548 | Delphi BLUE Metri-Pack 150 Tether CPA with harness ring | – | $0.80 |
Terminals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00124 | Aptiv (Delphi) GT 150 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.30 | ||
100-00125 | Aptiv (Delphi) GT 150 Female Sealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.30 | ||
100-00423 | Aptiv (Delphi) GT 280 Female Sealed Tin (Sn) 18-16 AWG Terminal | 5 | $0.75 | ||
100-00528 | Aptiv (Delphi) GT 280 Female Sealed Tin (Sn) 14-12 AWG Terminal | 5 | $0.75 |
Cable Seals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00190 | Delphi GT 150 Cable Seal WHITE for Cable Diameters 1.90-1.20mm | 10 | $0.28 | ||
100-00189 | Delphi GT 150 Cable Seal BLUE for Cable Diameters 2.40-1.86mm | 10 | $0.28 | ||
100-00367 | Delphi GT 280 Cable Seal YELLOW for Cable Diameters 2.40-1.86mm | 5 | $0.35 | ||
100-00526 | Delphi GT 280 Cable Seal TAN for Cable Diameters 3.20-2.50mm | 5 | $0.35 |
Plugs
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00208 | Delphi GT 150 Cavity Plug | 10 | $0.35 | ||
100-00210 | Delphi GT 280 Cavity Plug | 5 | $0.40 |
