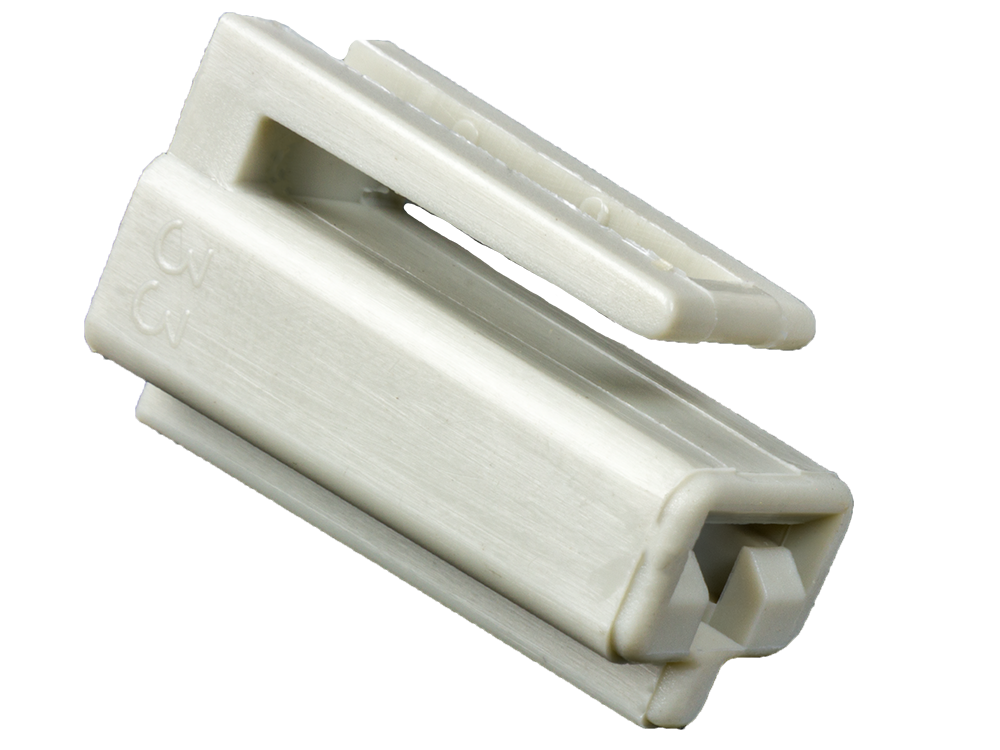

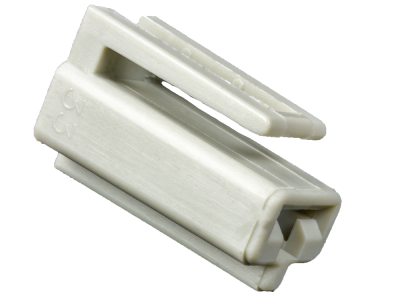

Aptiv (Delphi) 1 Way Cream 56 Series Unsealed Female Connector
Part #: 100-00542
Attributes
- COLOR: CREAM
- CAVITY COUNT: 1
- SEALED: UNSEALED
- MANUFACTURER: DELPHI
- FAMILY:
- SERIES: 56 SERIES
Dimensions
- Weight: 1.16 Grams
This connector is used with the large cap HEI distributors as the 12V ignition power to the ignition coil.
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00575 | Large Cap HEI Distributor 12V Ignition Connector Pigtail for GM TBI TPI and other large cap HEI distributors | – | $11.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00182 | Aptiv (Delphi) Series 56 Female Unsealed Tin (Sn) 20-18 AWG Terminal | 10 | $0.45 | |
|
100-00450 | Aptiv (Delphi) 56 Series Female Unsealed Tin (Sn) 16-14 AWG Terminal | 10 | $0.45 | |
|
100-00519 | Aptiv (Delphi) 56 Series Female Unsealed Tin (Sn) 12 AWG Terminal | 10 | $0.45 |
