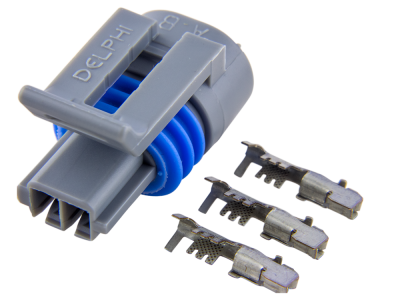

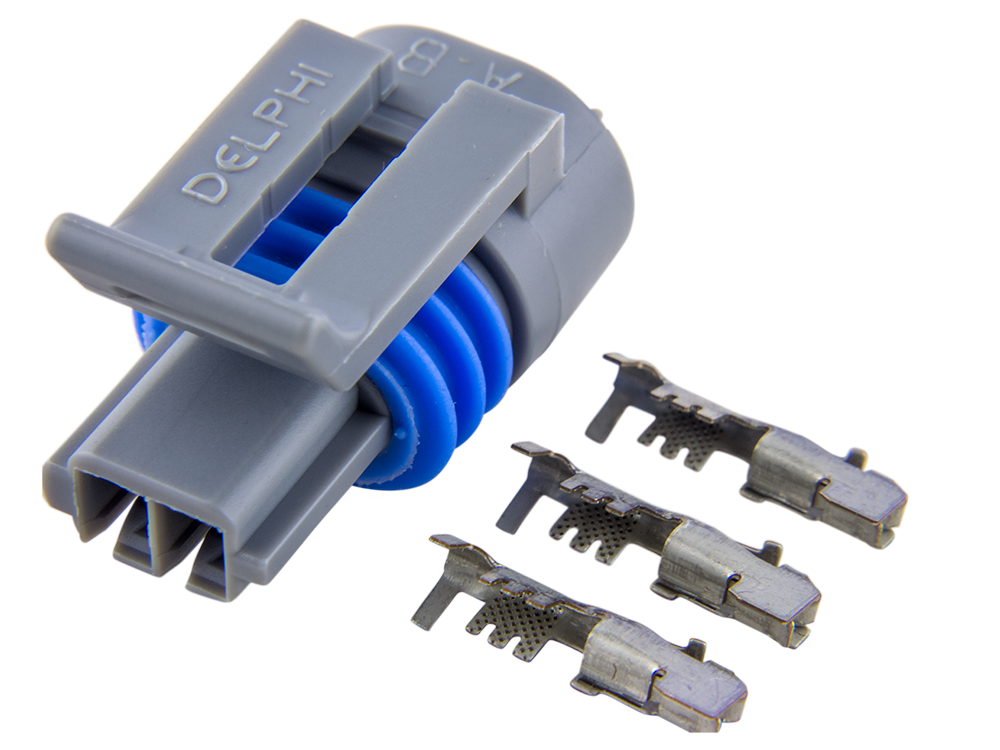

Connector Kit for GM Intake Air Temperature Sensor (IAT) Delphi Metri-Pack 150.2
Parts to build your own connector assembly
Part #: 100-01097
Attributes
- OE Manufacturer: GM
- Sensor Type: INTAKE AIR TEMPERATURE (IAT)
- Connector Cavities: 2
Dimensions
- Weight: 5 Ounces
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 2 way Metri-Pack 150.2 connector kit for GM Intake Air Temperature Sensor (IAT). Used with many production automotive engines.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | FUNCTION |
|---|---|
| A | SENSOR GROUND |
| B | IAT SENSOR SIGNAL |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00278 | Intake Air Temperature IAT Sensor Connector Pigtail for GM TBI TPI LT1 LT4 LS1 LS6 and many other engines | – | $7.50 |
Tools
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
110-00036 | Delphi Intake Air Temperature IAT Sensor 12160244 for TPI LT1 LS1 LS6 LS-Series Engines | – | $15.00 | |
|
110-00040 | Intake Air Temperature Sensor Foam Padded w/ Clip Style Mount | – | $15.00 | |
|
110-00080 | ACDelco Intake Air Temperature (IAT) Sensor 213-190 for many GM engines with 3/8-18 NPT threads | – | $36.50 |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00001 | Aptiv (Delphi) 2 Way Medium Gray Metri-Pack 150.2 Sealed Female Connector | – | $9.50 | |
|
100-00143 | Aptiv (Delphi) Metri-Pack 150.2 Female Unsealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.35 |
