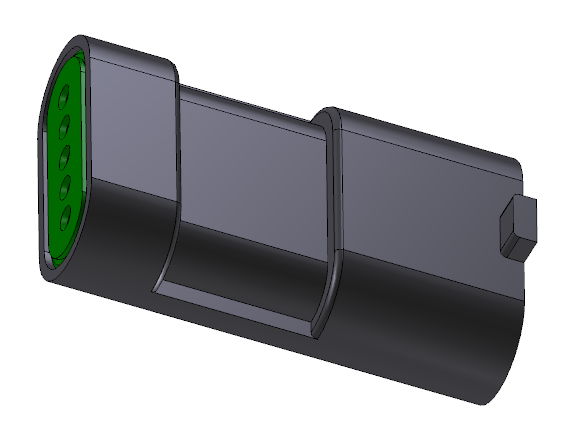

Caspers 5 Way Black Metri-Pack 150.2 Sealed Male Connector
Part #: 100-00807
Attributes
- COLOR: BLACK
- CAVITY COUNT: 5
- SEALED: SEALED
- MANUFACTURER: CASPERS
- FAMILY: METRI-PACK
- SERIES: 150.2
Dimensions
- Weight: 11.33 Grams
This connector mates to the 5 cavity Delphi Metri-Pack 150.2 female connector the 5 cavity GT 150 3.5mm female connector. A common usage of this connector is in the assembly of an LS1/LS6 MAF to LS2/LS3/LS7 MAF adapter harness. Terminals are not included, but are sold separately.
Mating Connectors
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00029 | Aptiv (Delphi) 5 Way Black GT 150 3.5mm Centerline Sealed Female Connector | – | $6.50 | ||
100-00796 | Aptiv (Delphi) 5 Way Black Metri-Pack 150.2 Sealed Female Connector | – | $9.00 |
This connector is used in the following assemblies:
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00813 | Mating 85mm MAF Harness Connector Pigtail for Gen III LS Truck and Corvette MAF Harness | – | $35.00 |
Terminals
Part # | Description | Min Qty | Price | Qty | |
---|---|---|---|---|---|
100-00804 | Aptiv (Delphi) Metri-Pack 150 Male Unsealed Tin (Sn) 20-16 AWG Terminal | – | $0.85 |
