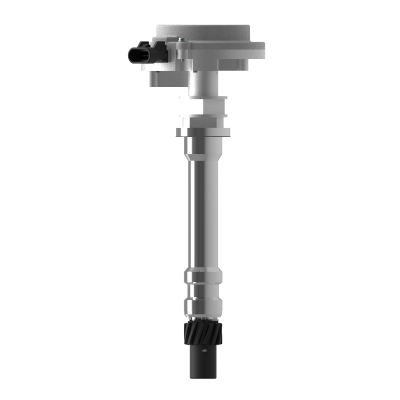

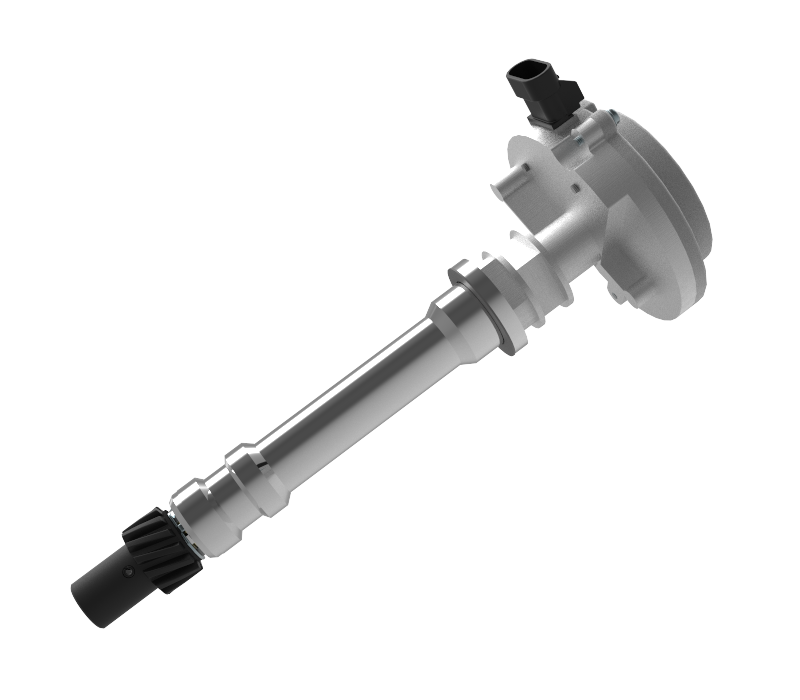

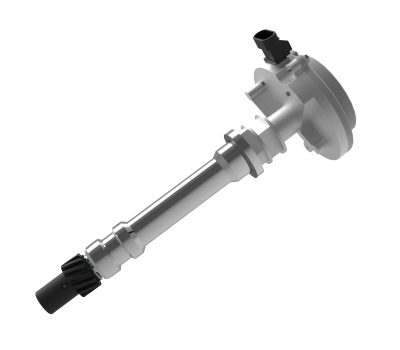

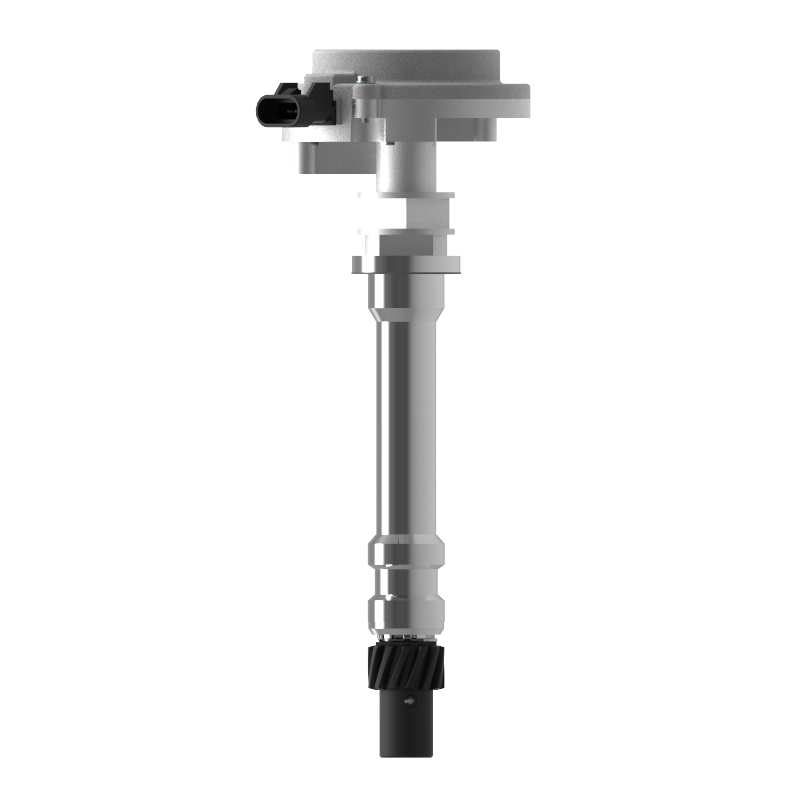

Cam Sync Distributor (1x Signal) for 4.3L V6, SBC, and BBC Engines
Part #: 120-00003
Dimensions
- Length: 0 inches
- Width: 0 inches
- Height: 0 inches
- Weight: 3 Pounds
Supporting Documents
This distributor assembly produces a 1x camshaft position signal that is compatible with Gen III LS-series electronics.
- 0-12V hall effect camshaft position sensor
- generates a 50% duty cycle (signal voltage high for 50% and signal low for 50%)
- shaft diameter measures 0.427 inch
- bronze or melonized steel gear available separately
- compatible with GM and aftermarket fuel management systems
The hold down clamp on this distributor is fixed. For easy cam signal adjustment, consider using a traditional style hold down clamp instead of the (removable) fixed clamp.
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00507 | Camshaft Position Sensor Connector Pigtail for Vortec Distributor | – | $12.00 | |
|
120-00167 | Distributor Gear - SBC and BBC Engines - Bronze - 0.427 inch shaft | – | $97.50 | |
|
120-00175 | Distributor Gear - SBC and BBC Engines - Melonized Steel - 0.427 inch shaft | – | $67.50 | Item is not For Sale |
|
120-00157 | Billet Aluminum Distributor Dust Cap BLACK for 1996-Newer 4.3L V6, SBC, and BBC Vortec Distributors | – | $45.00 | Item is not For Sale |
|
120-00165 | Billet Aluminum Distributor Dust Cap RED for 1996-Newer 4.3L V6, SBC, and BBC Vortec Distributors | – | $45.00 | Item is not For Sale |
|
120-00166 | Billet Aluminum Distributor Cap BLUE for 1996-Newer 4.3L V6, SBC, and BBC Vortec Distributors | – | $30.00 | Item is not For Sale |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
120-00005 | Cast Aluminum Distributor Dust Cap for 1996-Newer 4.3L V6, SBC, and BBC Vortec Distributors | – | $30.00 | |
|
110-00091 | ACDelco Camshaft Position CMP Sensor 19417445 for 1996-Newer 4.3L 5.0L 5.7L 7.4L Vortec Engines | – | $55.00 |
