Alternator (Generator) Connector Pigtail for LS1 Camaro Firebird
for GM LS-Series LS1 Camaro Firebird Alternator (Generator)
Part #: 100-00314
Attributes
- Engine Type: LS (24X)
- Wire Count: 1
- Connector Color: BLACK
- Application: CHARGING
Dimensions
- Weight: 10.86 Grams
DESCRIPTION:

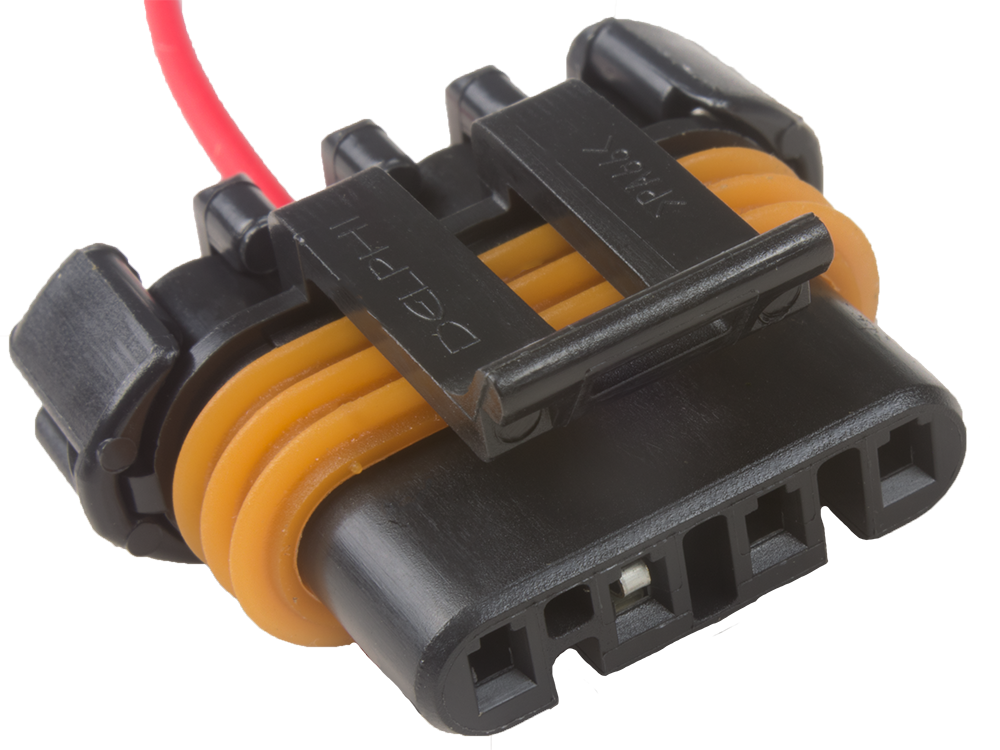

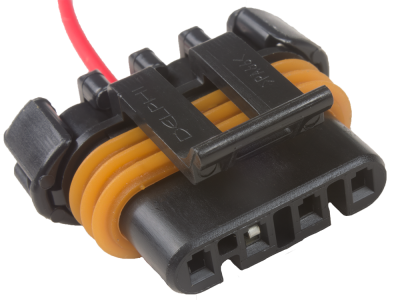

Genuine Delphi (GM Original Equipment Manufacturer - OEM) 1 wire Metri-Pack connector replacement pigtail for LS1 Camaro Firebird alternator (generator) within 1998-2002 engine harnesses. Assembled with 12 inch length of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | - | - | NOT USED |
| B | 18 GA | RED | TURN ON SIGNAL |
| C | - | - | NOT USED |
| D | - | - | NOT USED |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT1136 |
| GM | 15306009, 12085537, 15324824 |
| STANDARD MOTOR PRODUCTS | S754 |
| AIRTEX / WELLS | 1P1153 |
| DORMAN | 645906 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00048 | Aptiv (Delphi) 4 Way Black Metri-Pack 150 Sealed Female Connector | – | $9.00 |
