24x/1x LT1 Bundle - Holley Terminator X for Universal LT1 Engines
Part #: 100-02345
Dimensions
- Weight: 15 Pounds

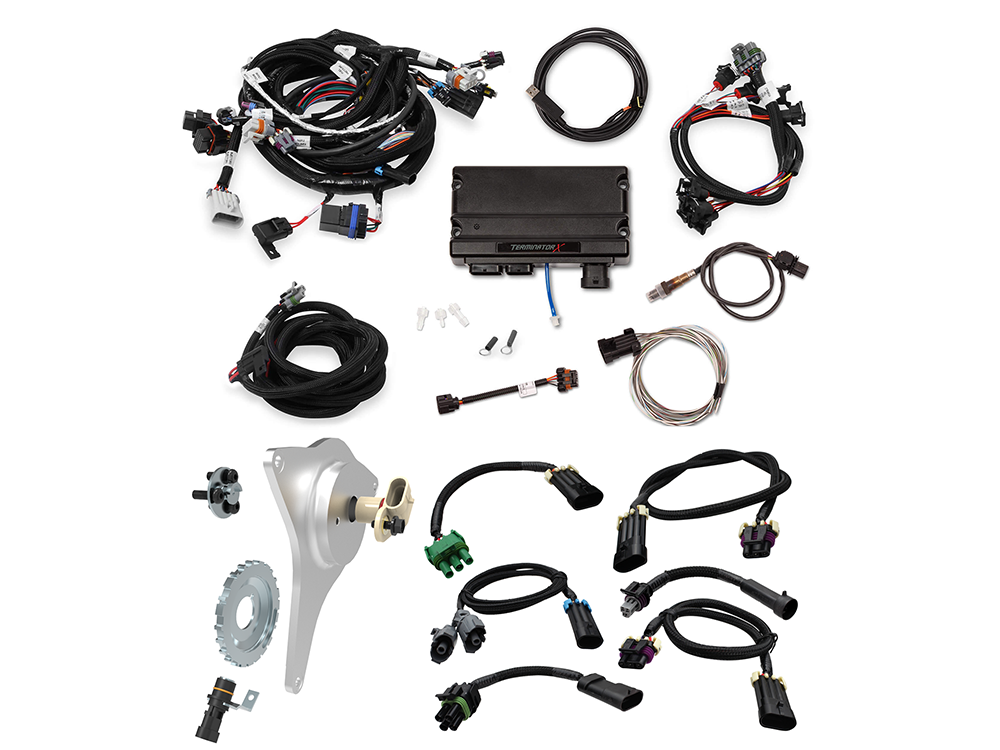

This 24x/1x LT1 Bundle is for LT1 engines installed into another vehicle, such as an OBS Chevy Truck, Hotrod, or any other vehicle transplant. It includes the following items (also shown below in the Replacement Parts section):
- 550-903T Holley Terminator X Bundle for LS1 without 3.5" Handheld
- 120-00067 EFI Connection 24x/1x Crank/Cam Signal Hardware for LT1 Engines
- 100-02350 EFI Connection LT1 Adapter Harness Bundle for Holley EFI
WE REALLY WANT YOU TO CONSIDER THE HOLLEY HP OR DOMINATOR ECU
For the following reasons, we would rather you use a Holley HP or Dominator ECU:
- Terminator X ECUs do not support System Logs. What this means is that if you have any reason to troubleshoot a crank or cam signal, Holley's Terminator X software will not provide the oscilloscope-like signal waveform feature that is standard with HP and Dominator software. The Terminator X ECUs offer LED indicators that are of little to no help with crank and cam signal diagnostics. If you contact us to say that the Terminator X LEDs are reporting an issue with the crank or cam signal, we are both going to wish you had chosen an HP or Dominator ECU.
- Terminator X ECUs are plastic and not best suited for the engine bay. While Holley permits the use of the Terminator X within some engine bays, the plastic housing does not make these ECUs ideal for under hood temperatures. Consider an HP or Dominator ECU as their housings are aluminum and better suited for engine bay placement.
IMPORTANT! 1992-1995 LT1 engines will require a GM 1996-1997 LT1 timing cover or an EFI Connection billet aluminum timing cover. Timing cover not included.
