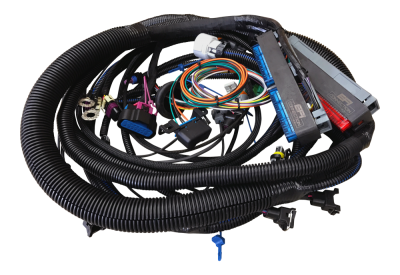

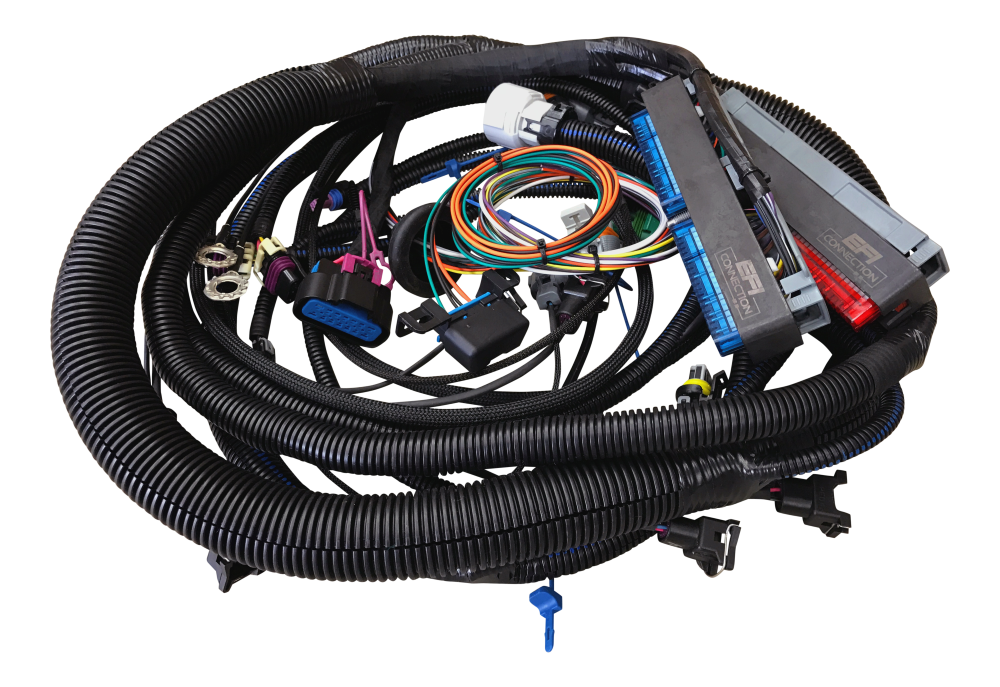

24x LT1 Engine Harness - Electronic Throttle
Part #: 100-00475
Dimensions
- Weight: 10 Pounds
Lead Time: 8 WEEKS FROM DATE OF PURCHASE
This engine harness is best suited for an LT1 engine being installed into a street rod or an older vehicle. PCM is located 4-5ft from the back of the engine. Intended for LS1 PCM control, fuse block assembly with fuel pump relay, 4L60E or T56 transmission control, closed loop operation, electric fan relay control outputs, speedometer output, tach output, service engine lamp output, and diagnostic connection. Includes throttle actuator control (TAC) connection and 5ft TAC to pedal harness. This harness contains no wire dress.
LT1/LT4 (1992-1997)
- 12200411 PCM (24x)
- E40 ECM (24x)
- E38 ECM (58x)
- E67 ECM (58x)
- 1994-1995 OBD-I PCM
- 1996-1997 OBD-II PCM
